CHAPTER 2 NEW FUNCTIONS
2-66

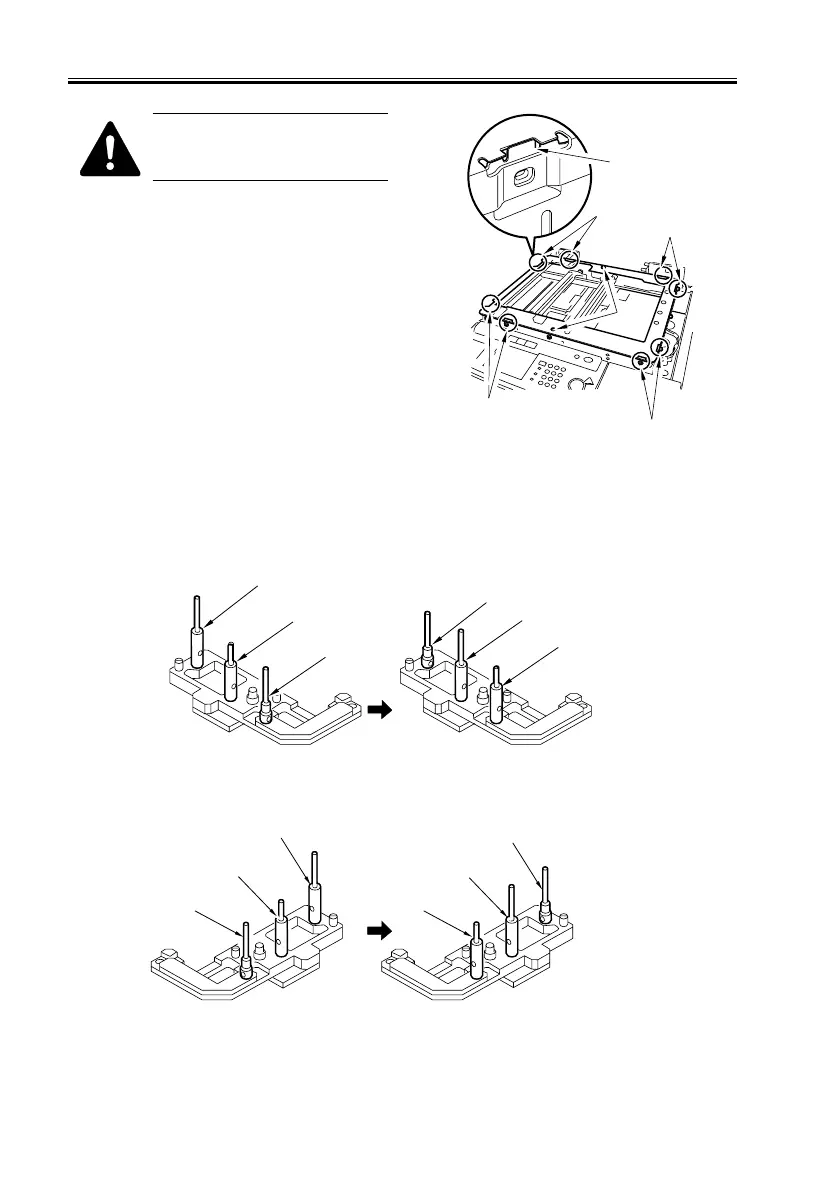

When mounting the reader up-
per frame, be sure to go through
the following steps:
1) Fit the ten claws [1] of the reader frame
correctly into the cut-offs in the reader
upper frame.
2) Secure the positions [2] of the six left/
right claws using screws.
3) Fit the two screws [3] at the end.
F02-309-15
3.9.9 Positioning the No. 1/2 Mirror Base
1) Set the pins of the mirror position tool
as indicated.
F02-309-16
Initial FY9-3009 configuration
(for front)
Configuration used for the machine
(for front)
Initial FY9-3009 configuration
(for rear)
Configuration used for the machine
(for rear)
[A]
[A]
[A]
[A]
[B]
[B]
[B]
[B]
[C]
[C]
[C]
[C]
