2.4.2 Orientation of the Deck/Cassette Separation Roller

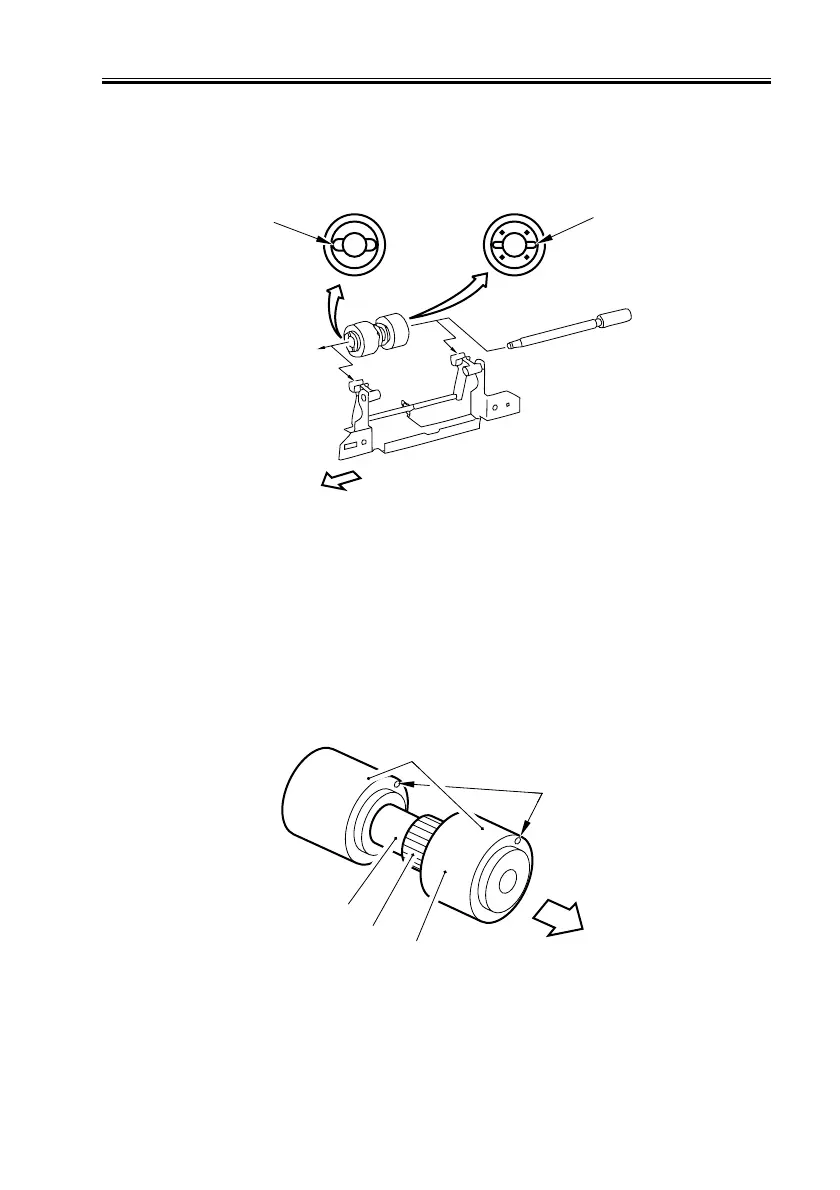

When replacing the separation roller, be sure it is orientated as follows:
F06-204-03
2.4.3 Orientation of the Feeding Roller of the Deck/Cassette Pickup Assem-
bly
When mounting the feeding roller assembly of the deck/cassette pickup assembly, be sure
that the belt pulley [2] is toward the front of the machine. When mounting the feeding roller
[3] to the feeding roller shaft [4], be sure that the round marking [5] is toward the front of
the machine.
F06-204-04
Wider groove
Narrower groove
(front of machine)
[2]
[1]
[4]
[3]
[5]
(front)
