COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001
CHAPTER 6 TROUBLESHOOTING
6-24
2.4.7 Adjusting the Pressure of the Separation Roller of the Deck/Cassette
If double feeding or pickup failure occurs during pickup, change the position of the pres-
sure spring of the separation roller.
• If double feeding occurs, move the hook of the spring in the direction of B.
• If pickup failure occurs, move the hook of the spring in the direction of A.

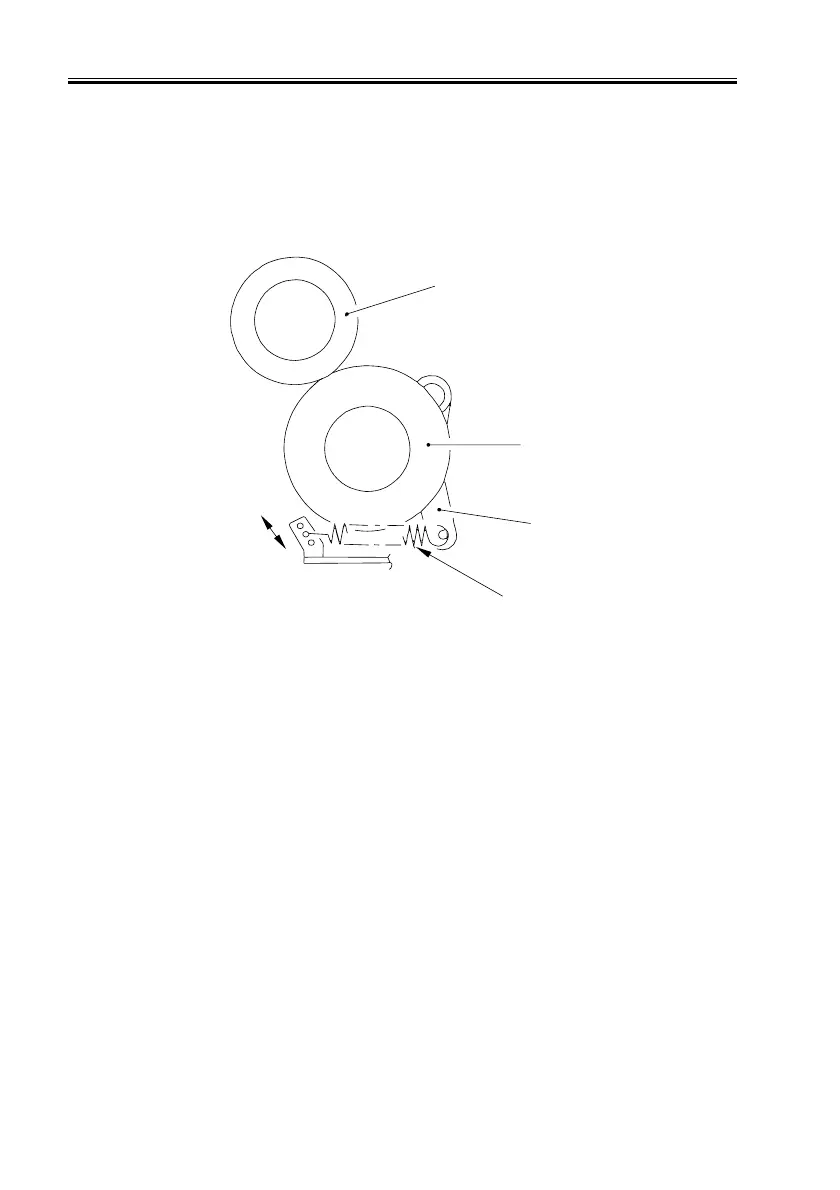

[1] Feeding roller [2] Separation roller
[3] Locking lever [4] Pressure spring
F06-204-09
[1]
[2]
[3]
[4]
A
B
