CHAPTER 4 INSTALLATION
4-53
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

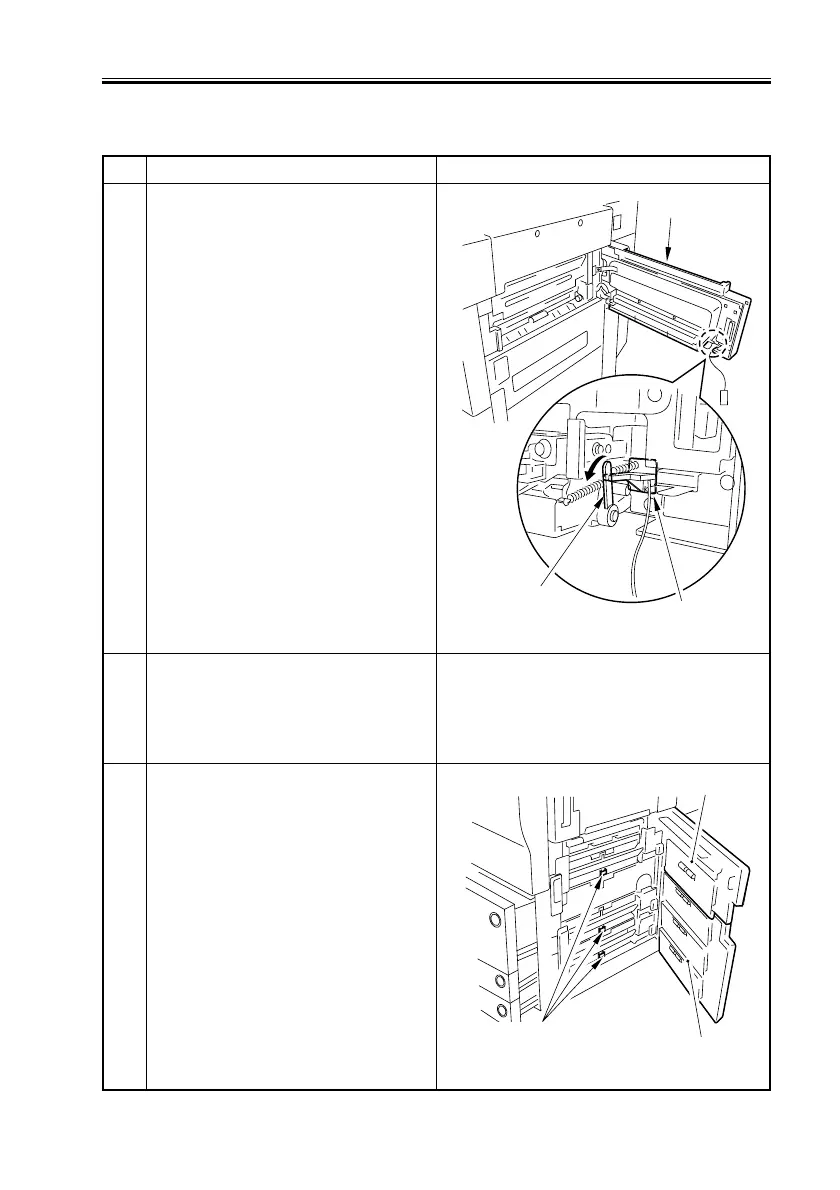

3.7 Mounting the Pickup Assembly
F04-307-02
1 Shift the lever [1] in the direction of the
arrow, and remove the pickup roller
releasing spacer [2] identified by a tag.
Close the manual feed tray unit [3].
F04-307-01
2 Open the right upper cover and right
lower cover; then, press the releasing
buttons of the front deck (right) and
cassettes 3 and 4, and slide them out
halfway.
3 Remove the 3 pickup roller releasing
spacers [1].
Close the right upper cover [2] and right
lower cover [3].
Slide back the front deck (right) and
cassettes 3 and 4.
No. Work Checks/remarks
[2]
[1]
[3]
[1]
[2]
[3]
To Next Page
