CHAPTER 2 NEW FUNCTIONS
2-135
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

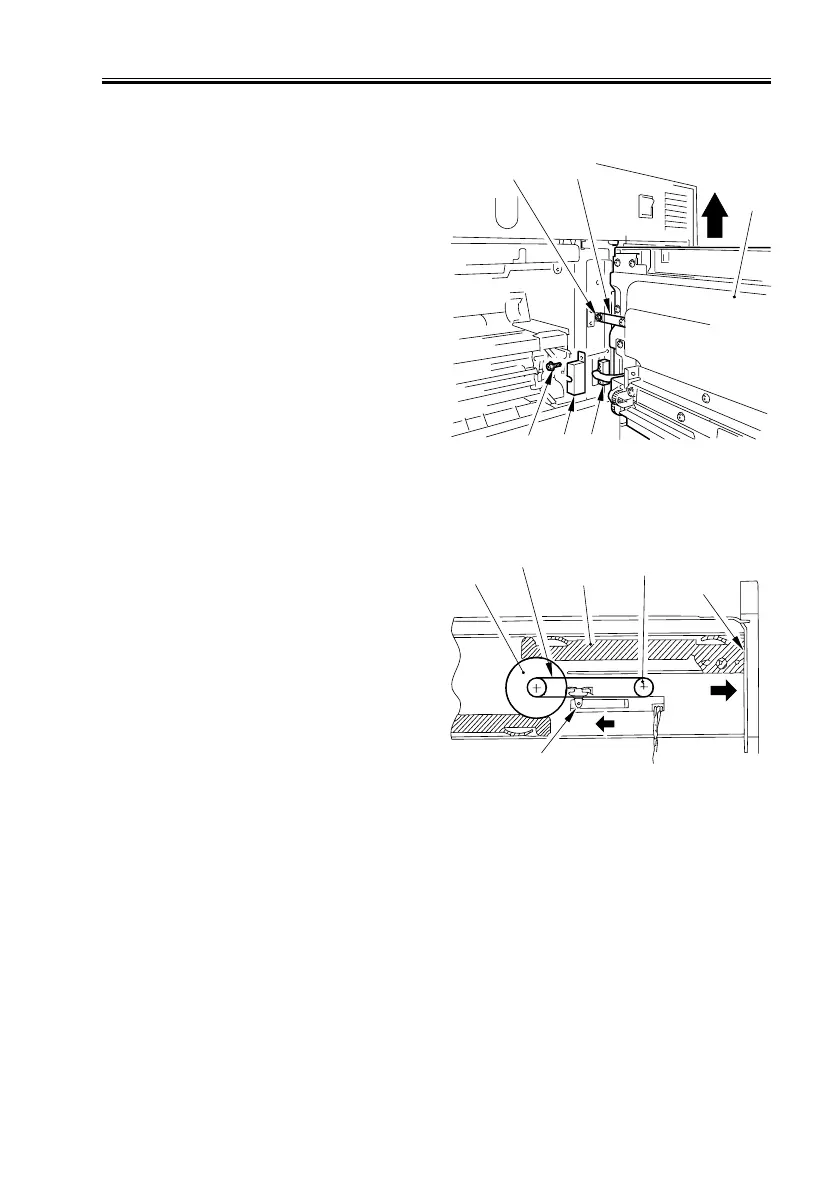

8.5.1 Manual Feed Tray Assembly
a. Removing the Manual Feed Tray Unit
1) Remove the upper right cover (See
10.4.1.i./j.).
2) Open the manual feed tray unit [1].
3) Remove the screw [2], and detach the
door tape [3] from the machine side.
4) Remove the screw [4], and detach the
connector cover [5].
5) Disconnect the connector [6], and de-
tach the manual feed tray unit [1] up-
ward while it is kept open at about 90°.
F02-805-01
b. Fitting the Side Guide Timing Belt for the Manual Feed Tray Assembly
1) Butt the rack plate [1] of the manual
feed tray against section A (in open
state).
2) Move the slide volume [2] in the direc-
tion of B, and fit the timing belt [3] to
the pulley [4] and the pulley [5].
F02-805-02
[1]
[6]
[5]
[4]
[2] [3]
[4]
[5]
[3]
[1]
A
[2]
B
To Next Page
