CHAPTER 2 NEW FUNCTIONS
2-117
COPYRIGHT
©
2001 CANON INC. 2000 2000 2000 2000 CANON iR8500/7200 REV.1 AUG. 2001

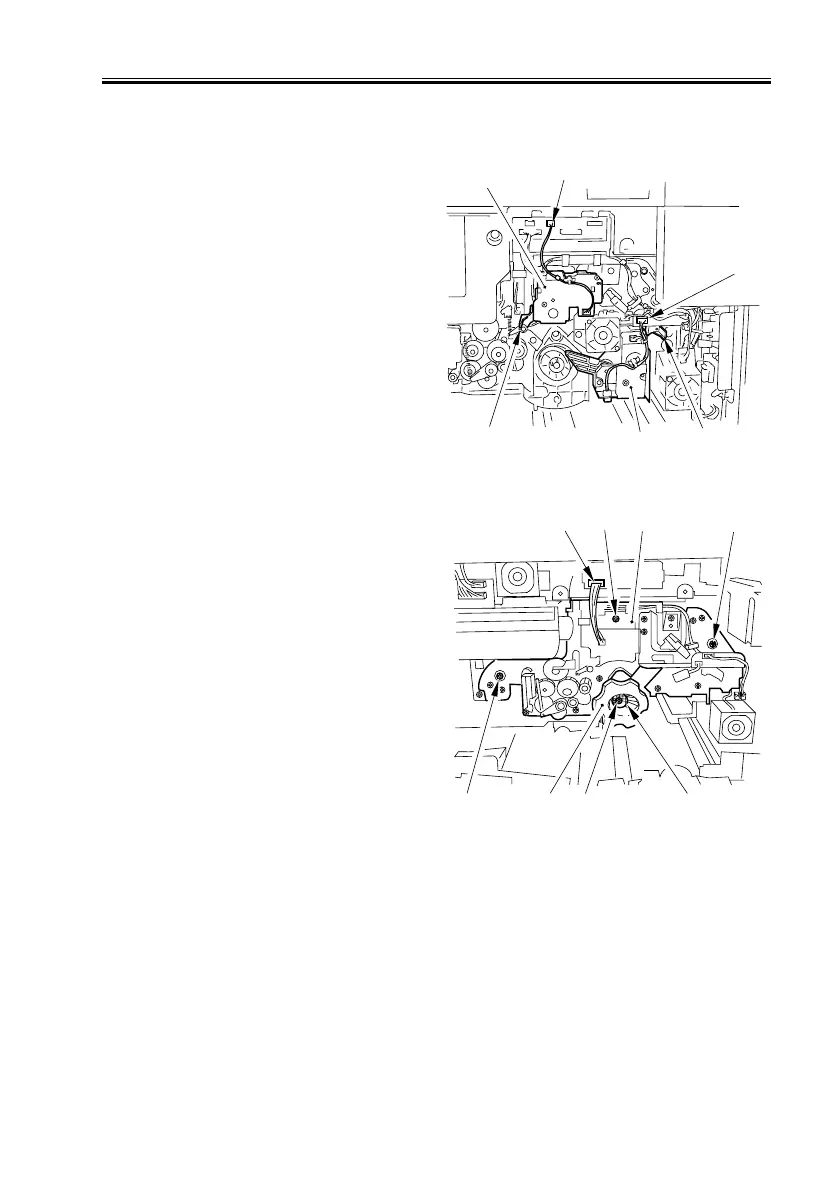

7.9.1 Process Unit
a. Removing the Process Unit
1) Remove the developing assembly.
2) Remove the process unit cover (4
screws).
3) Slide out the fixing/feeder unit.
4) Remove the fixing toner cover; take out
the drum protective sheet; and lay it
over the fixing/feeder unit.
5) Disconnect the connector [1], and re-
lease the stopper lever [2]; then, detach
the primary charging assembly [3].
6) Disconnect the connector [4], and re-
lease the stopper lever [5]; then, detach
the pre-transfer charging assembly [6].
F02-709-01
7) While using the drum stop [1] (found
inside the compartment behind the front
cover) to fix the drum in place, remove
the screw [2], and detach the drum fix-
ing block [3].
8) Detach the drum stopper [1].
9) Remove the 3 screws [4], and discon-
nect the connector [5]; then, slide out
the process unit [6].
F02-709-02
[1]
[3]
[2] [5]
[6]
[4]
[4][5]
[4]
[4]
[1]
[2]
[3]
[6]
To Next Page
