COPYRIGHT
©
2001 CANON INC
.
2000 2000 2000 2000
CANON iR8500/7200 REV
.1 AUG.
2001
CHAPTER 6
TR
OUBLESHOO
TING
6-27

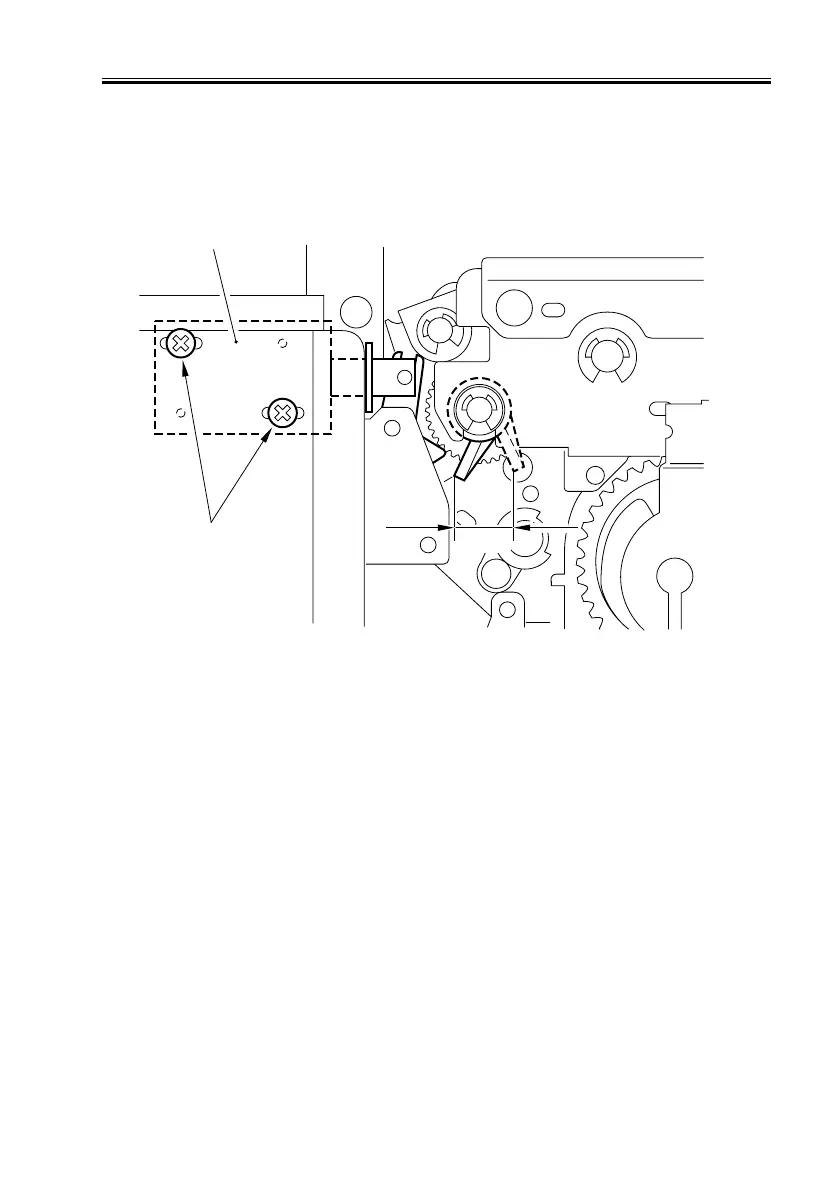

2.4.10 P
osition of the Fixing
W
eb Solenoid (SL2)
a.
If the Fixing W
eb Is Ne
w
Use the screw [2] to adjust the position of the solenoid [1] so that the tra
vel of the dri
v
e
lev
er is 8.2 mm.
F06-204-12
8.2mm
[1]
[2]
429
431
