Installation
Attaching the Extensions for the B706
Important!
• The procedures in this section are for installation of the cover interposer with the
B706 only.
• If you are installing the cover interposer with the B700/B701, go to the next
section.

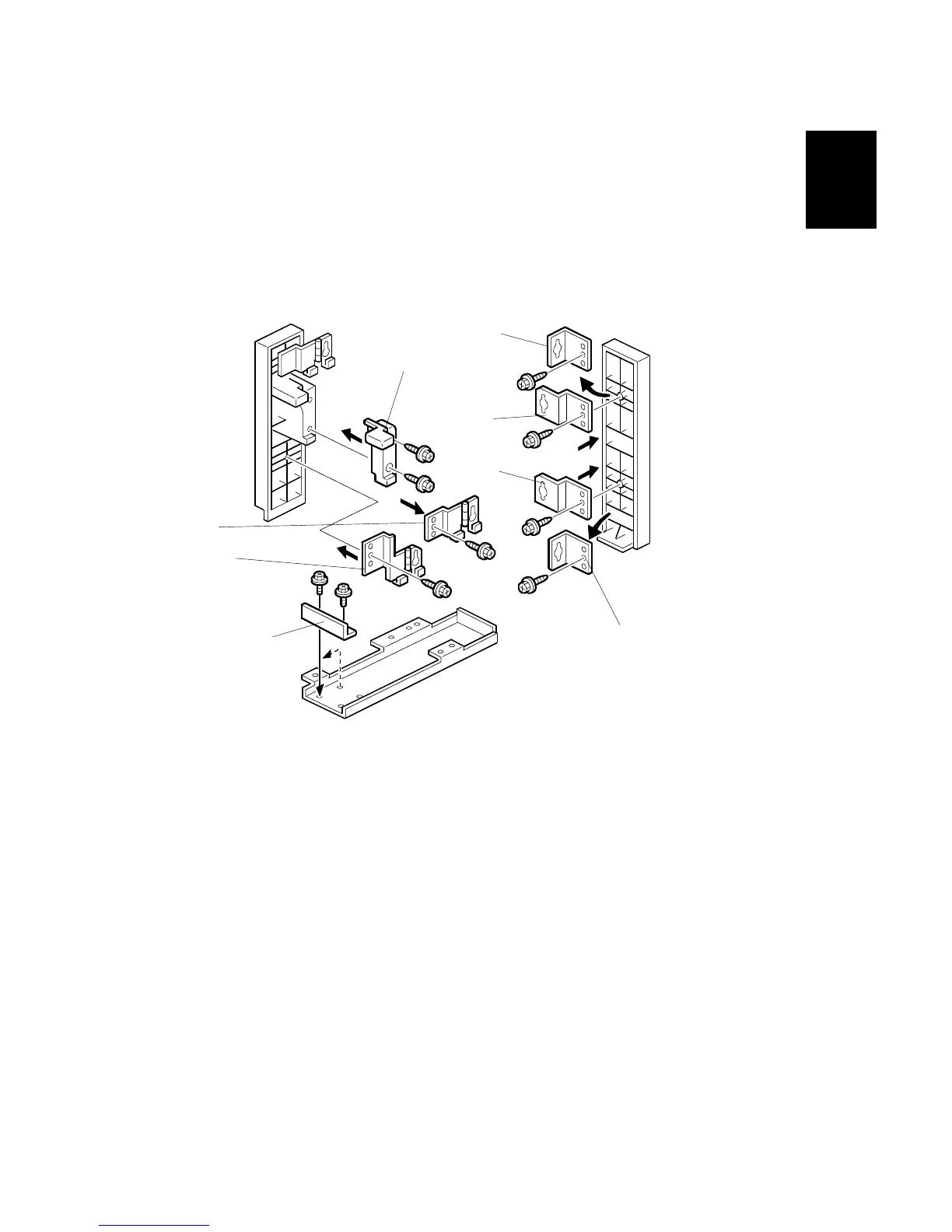

Modify the Attachments for the B706
Front Door Extension:
1. Attach spacer [A] to the front door extension (top) (" x 2).
2. Remove the lower hinge [B] and replace it with [C] (" x 2).
Rear Cover Extension (Bottom):
3. Remove [D] and replace it with [E] (" x 1).
4. Remove [F] and replace it with [G] (" x 1).
Plate Extension (Bottom):
5. Remove bracket [H] and attach it to the end of the bottom plate extension
(" x 2).
B704I108.WMF
Front Door Extension (Top)
Rear Cover Extension (Bottom)
Bottom Plate Extension
[A]
[D]
[E]
[F]
[G]
[H]
[B]
[C]
To Next Page
