15 February 2006 JOGGER UNIT (B513)
1-65
Installation

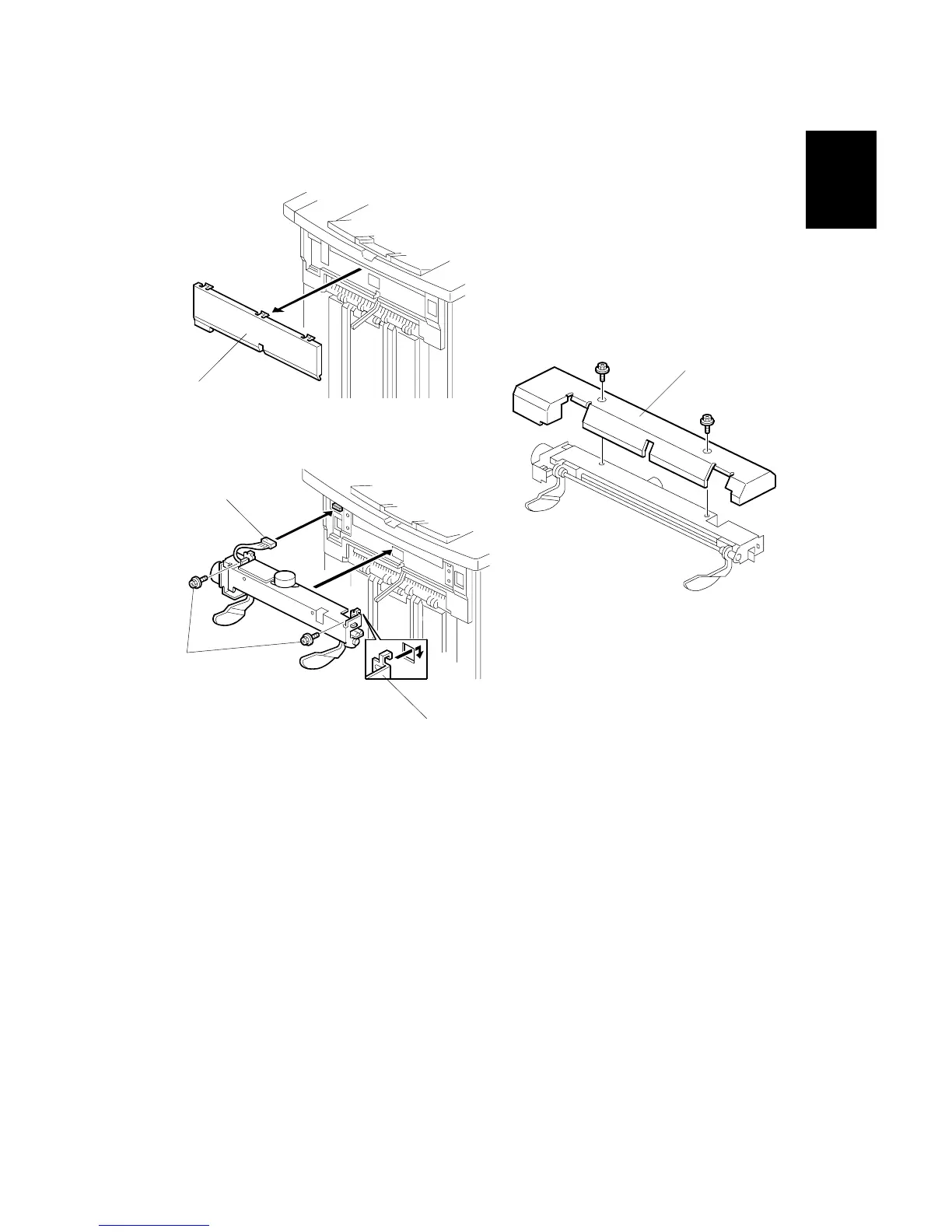

1.12.2 INSTALLATION PROCEDURE
1. Turn the main machine switch off and disconnect the finisher from the main
frame.
2. Use the flat head of a screwdriver to remove the left upper cover [A] from the
finisher and discard it.
3. Remove the cover plate [B] from the jogger unit (" x 2). Save the screws.
4. With the jogger unit connector on the left side, hook the frame of the jogger unit
[C] into the holes on the left and right side of the finisher frame.
5. On the left side, fasten the connector [D] to the socket (# x 1).
6. On the left and right side, attach the jogger unit frame to the side of the finisher
with the screws [E] provided (" x 2).
7. Re-attach the jogger unit cover to its frame with the screws removed in step 2
(" x 2).
