FUSING UNIT 15 February 2006
3-84

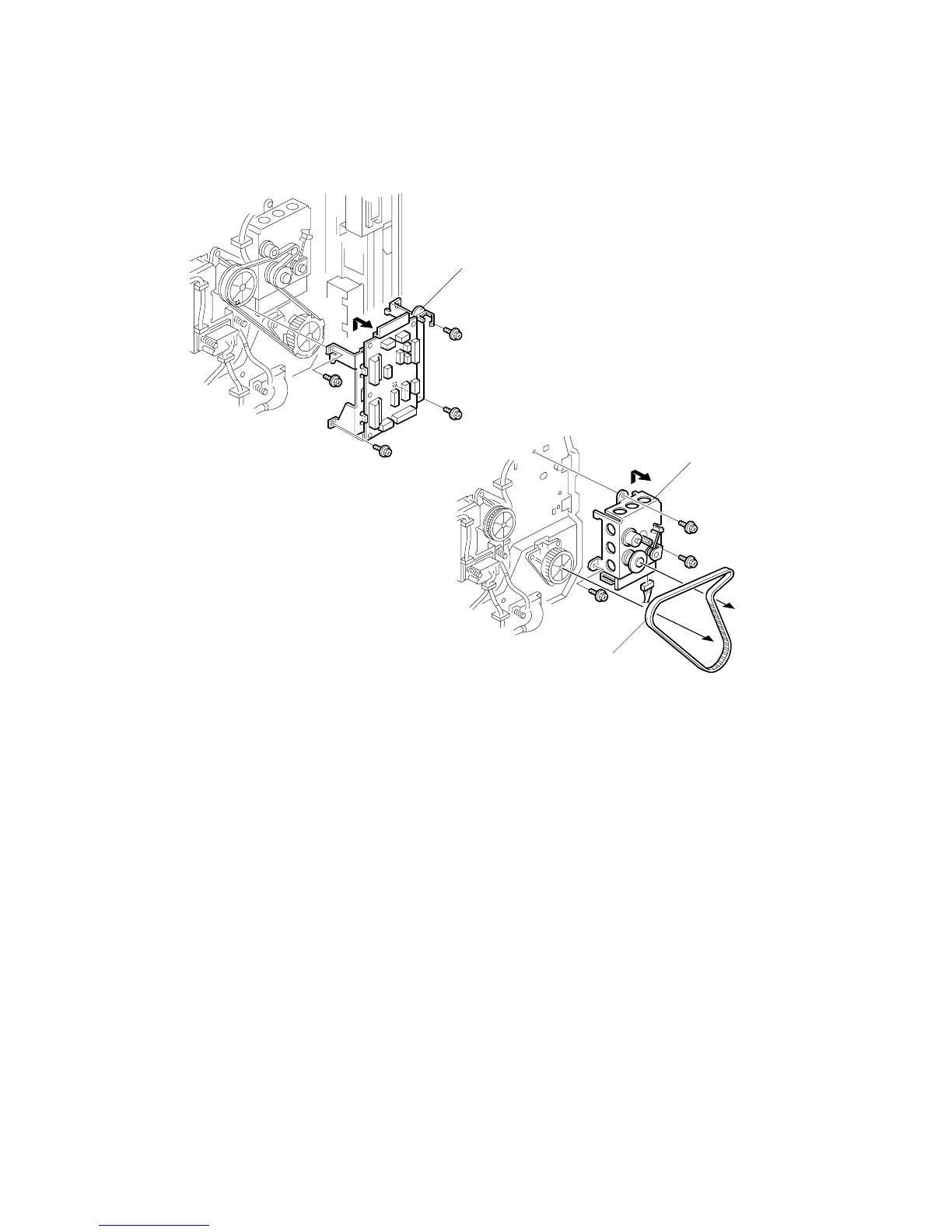

3.9.13 FUSING/EXIT MOTOR
Rear upper cover (☛ 3.3.5)
Open the I/O board ( x 2)
[A]: CNB bracket ( x 4,  x all)
[B]: Timing belt
[C]: Fusing/exit motor bracket ( x 1)
Fusing/exit motor ( x 2)
• The fusing/exit motor (not shown) is inside the bracket.
B246R1032.WMF
B246R1034.WMF
[A]
[C]
[B]
