PAPER FEED 15 February 2006
6-110
6.11.11 PAPER REGISTRATION
Overview

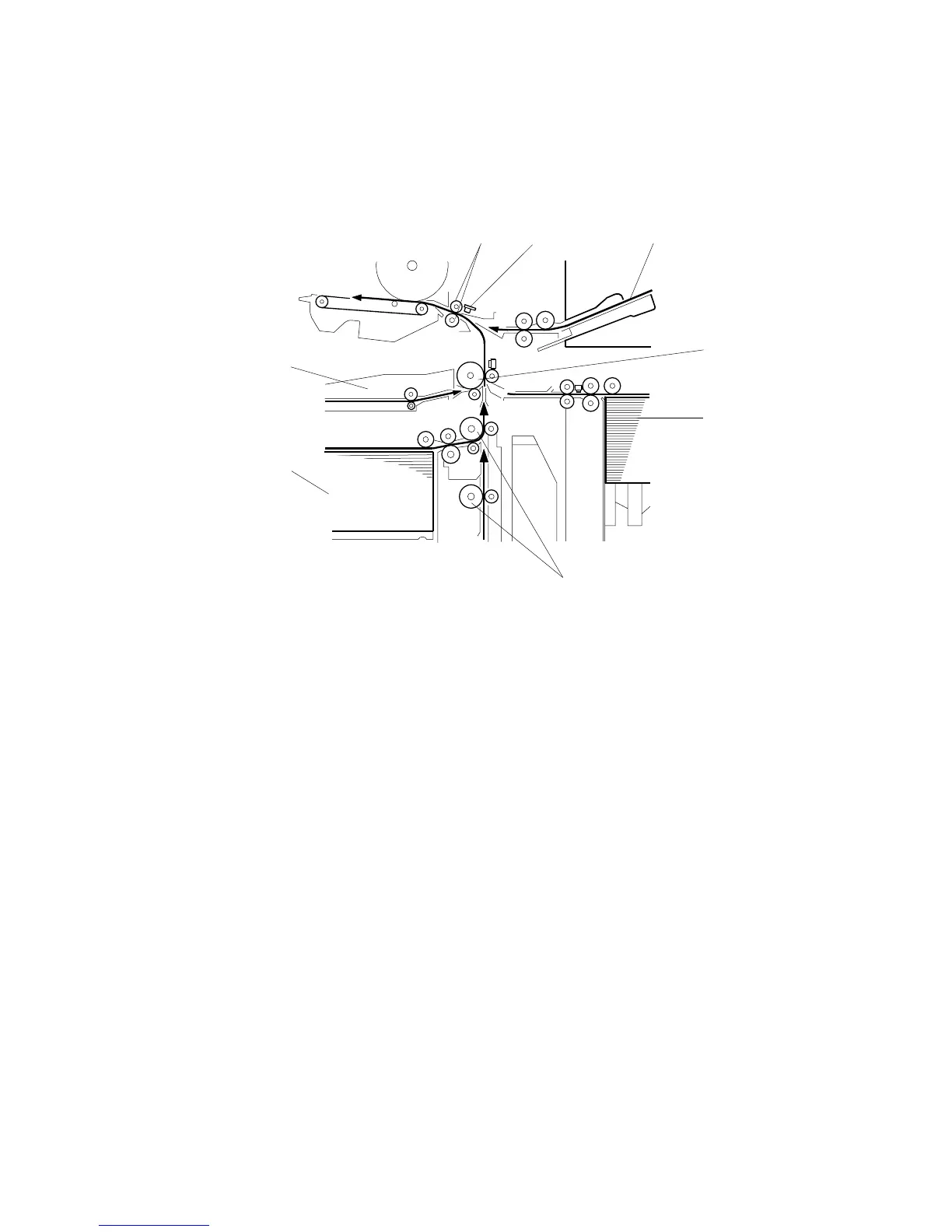

The registration rollers [A] and registration sensor [B] handle paper fed from four
directions:
• Tandem tray and universal trays below [C]
• Duplex unit [D]
• By-pass tray [E]
• Optional LCT [F]
The grip rollers [G] feed paper from the trays into the vertical transport path to the
registration rollers.
The upper relay roller [H] feeds all paper exiting the vertical transport path. It also
feeds paper from the duplex unit and LCT.
The by-pass tray feeds paper directly to the registration rollers.
B246D976.WMFF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
