15 February 2006 OVERVIEW
4-9
Trouble-
shooting
Duplex Transport

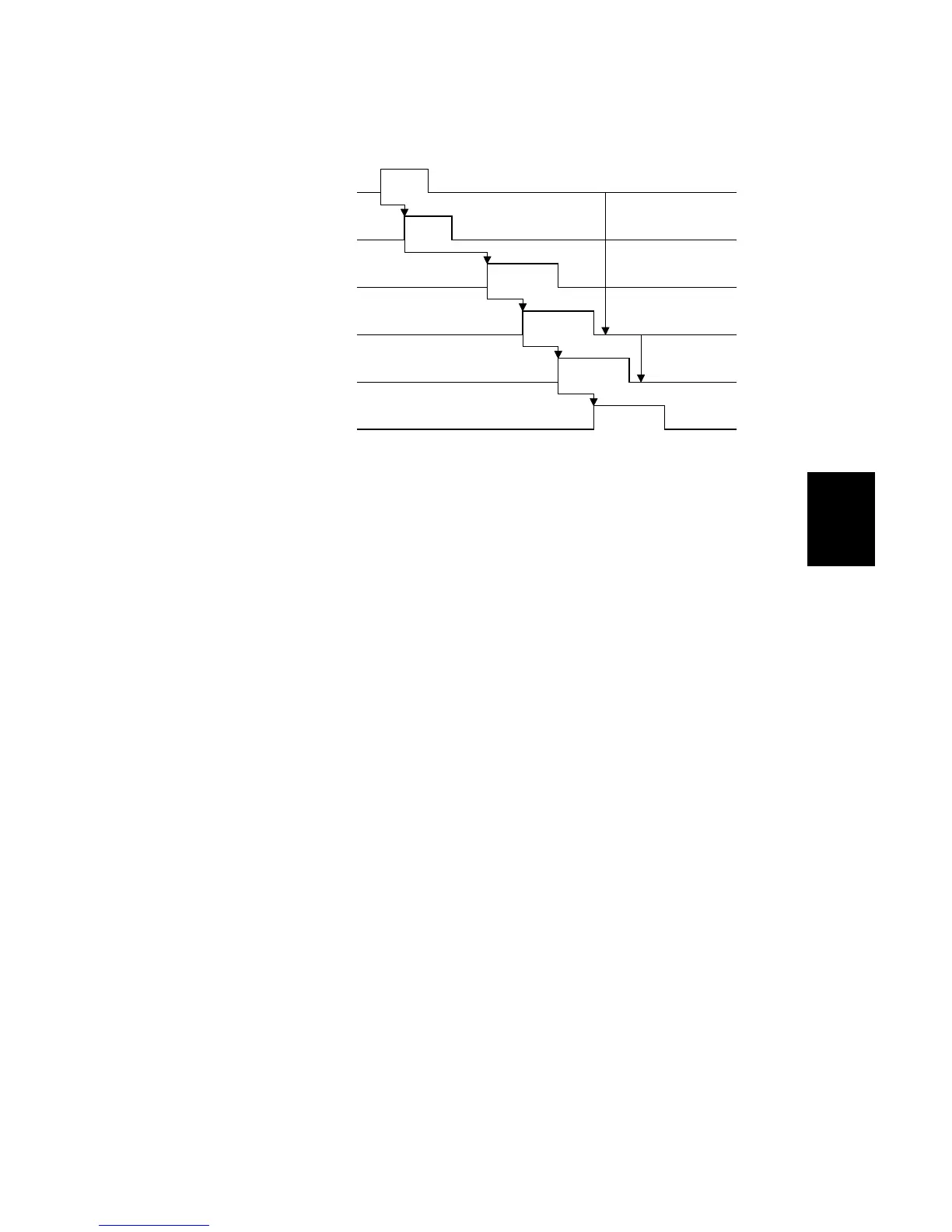

(1): Duplex entrance sensor ON → Inverter exit sensor does not switch ON at the correct
time.
(2): Inverter exit sensor ON → Duplex transport sensor 1 does not switch on at the correct
time.
(3): Duplex transport sensor 1 ON → Duplex transport sensor 2 does not switch on at the
correct time.
(4): Duplex entrance sensor ON → Duplex transport sensor 2 does not switch OFF at the
correct time.
(5): Duplex transport sensor 2 ON → Duplex transport sensor 3 does not switch ON at the
correct time.
(6): Duplex transport sensor 2 OFF → Duplex transport sensor 3 does not switch OFF at the
correct time.
(7): Duplex transport sensor 3 ON → Relay sensor does not switch on at the correct time.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Duplex entrance sensor
Inverter Exit sensor
Duplex transport sensor 1
Duplex transport sensor 2
Duplex transport sensor 3
Relay sensor
B246T904.WMF
To Next Page
