15 February 2006 LASER UNIT
3-29
Replacement
Adjustment
3.5.3 LASER SYNCHRONIZATION DETECTOR REPLACEMENT
Remove the right side cover ( x 2)
NOTE: If the optional LCT is installed, disconnect it ( x 1).

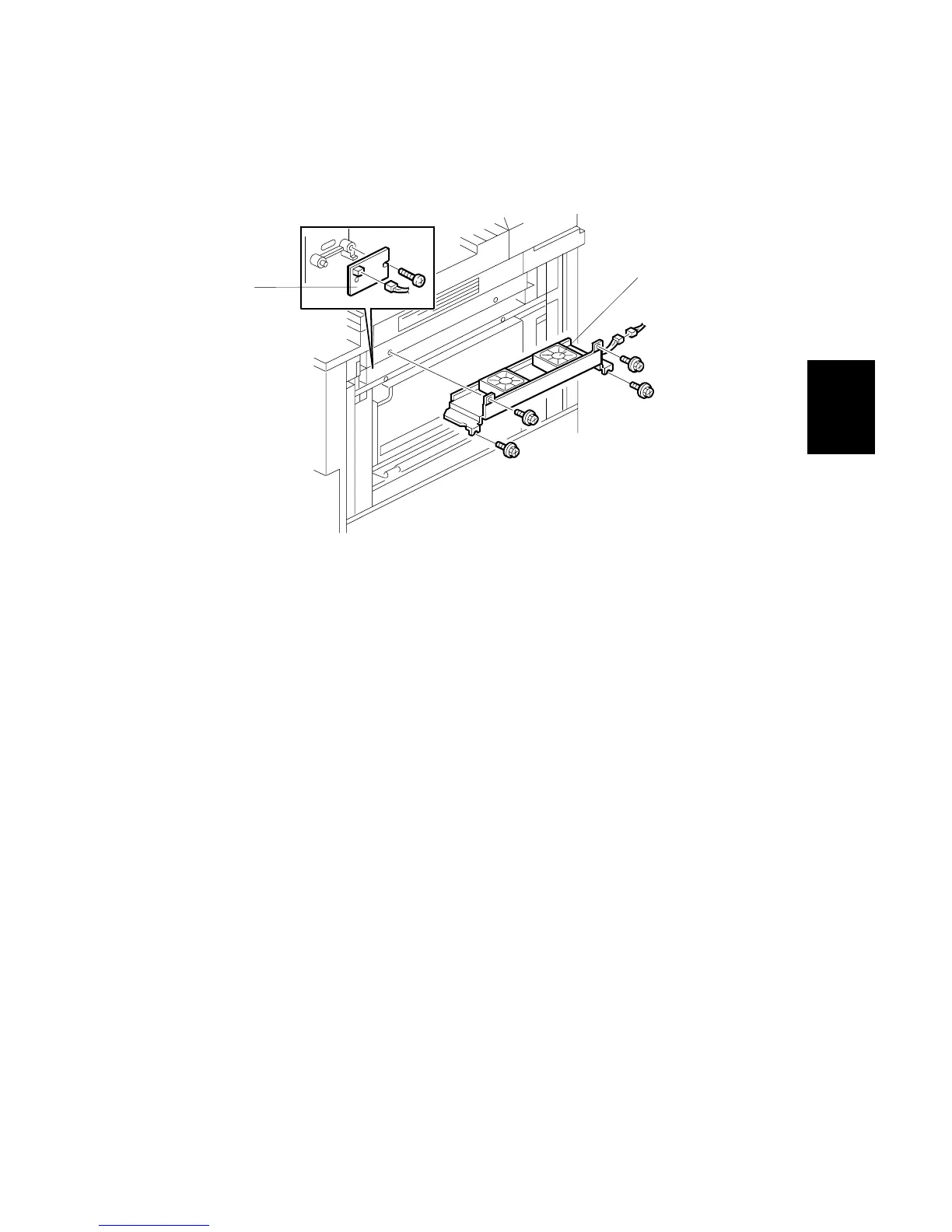

[A]: Development unit fans ( x 4,  x 1)
[B]: Synchronization detector ( x 1,  x 1)
After replacement, set SP1002-001~007 (Side-to-Side Registration) to the defaults.
B246R934.WMF
[A]
[B]
