COVER INTERPOSER TRAY (B470) 15 February 2006
1-50

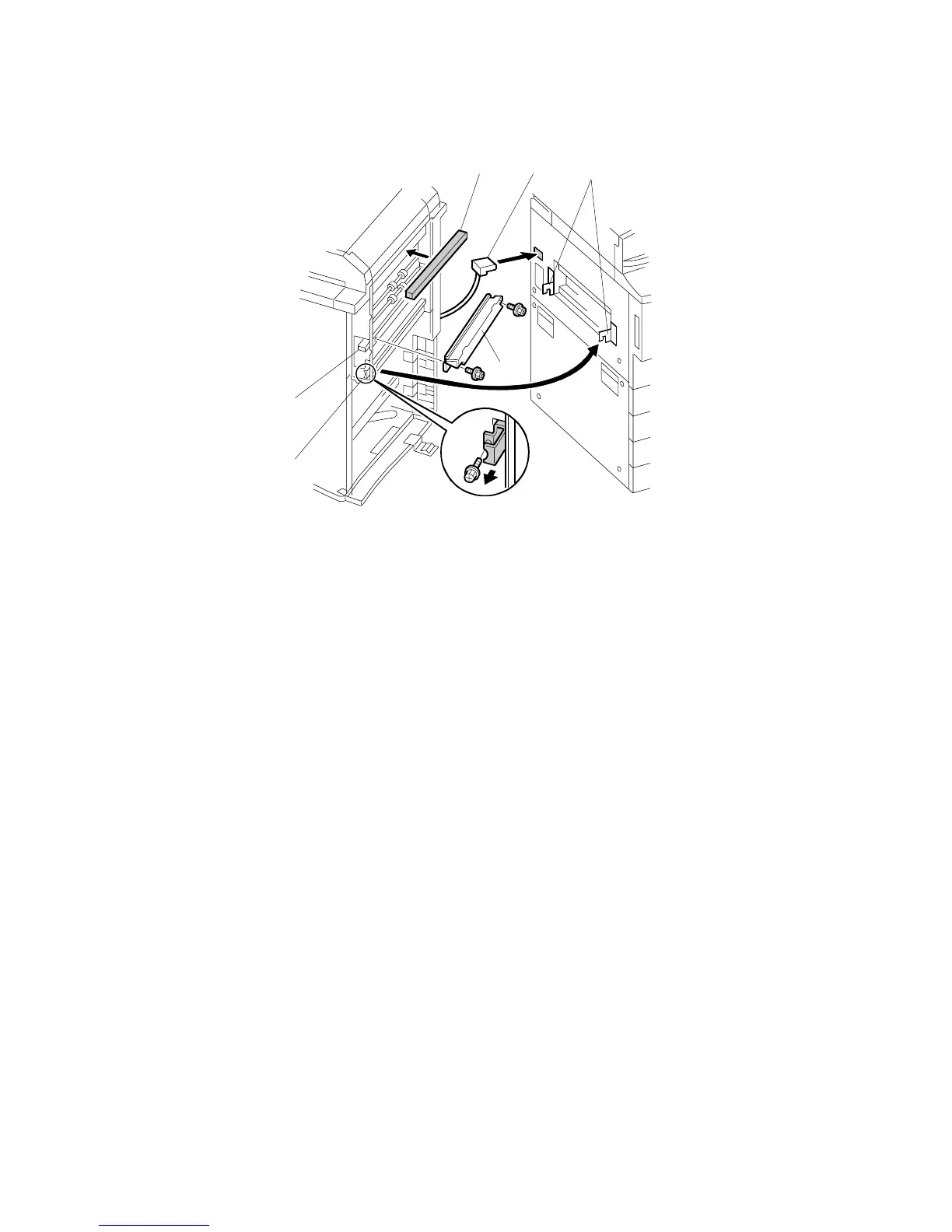

Attaching the Finisher to the Machine
1. Attach the sponge strip [A] (this is supplied with the finisher).
NOTE: If you will install the cover interposer tray with a finisher that was
installed on the machine before this time, remove the strip from the
finisher and attach it to the cover interposer tray.
2. Attach the guide plate [B] (removed from the finisher) to the cover interposer
(" x 2).
NOTE: Make sure to use the two small tapping screws supplied with the
machine, and not the machine screws that you removed from the
finisher with the guide plate.
3. Release the lock lever [C] (" x 1).
4. Lower the transport guide plate [D].
5. Slowly push the finisher against the side of the machine until the brackets [E]
go into the slots.
Important: Do the above step carefully. Do not bend the entrance guide
plates. Bent guide plates could cause a blockage for paper transport
between the finisher and copier.
6. Attach the lock lever [C] (" x 1).
7. Lift the transport guide plate [D] to close it.
8. Connect the connector [E] into the copier.
B470I005.WMF
[A]
[B]
[C]
[F]
[D]
[E]
To Next Page
