15 February 2006 IMAGE FUSING AND PAPER EXIT
6-117
Detailed
Descriptions
6.12.3 PRESSURE ROLLER
B064 Series

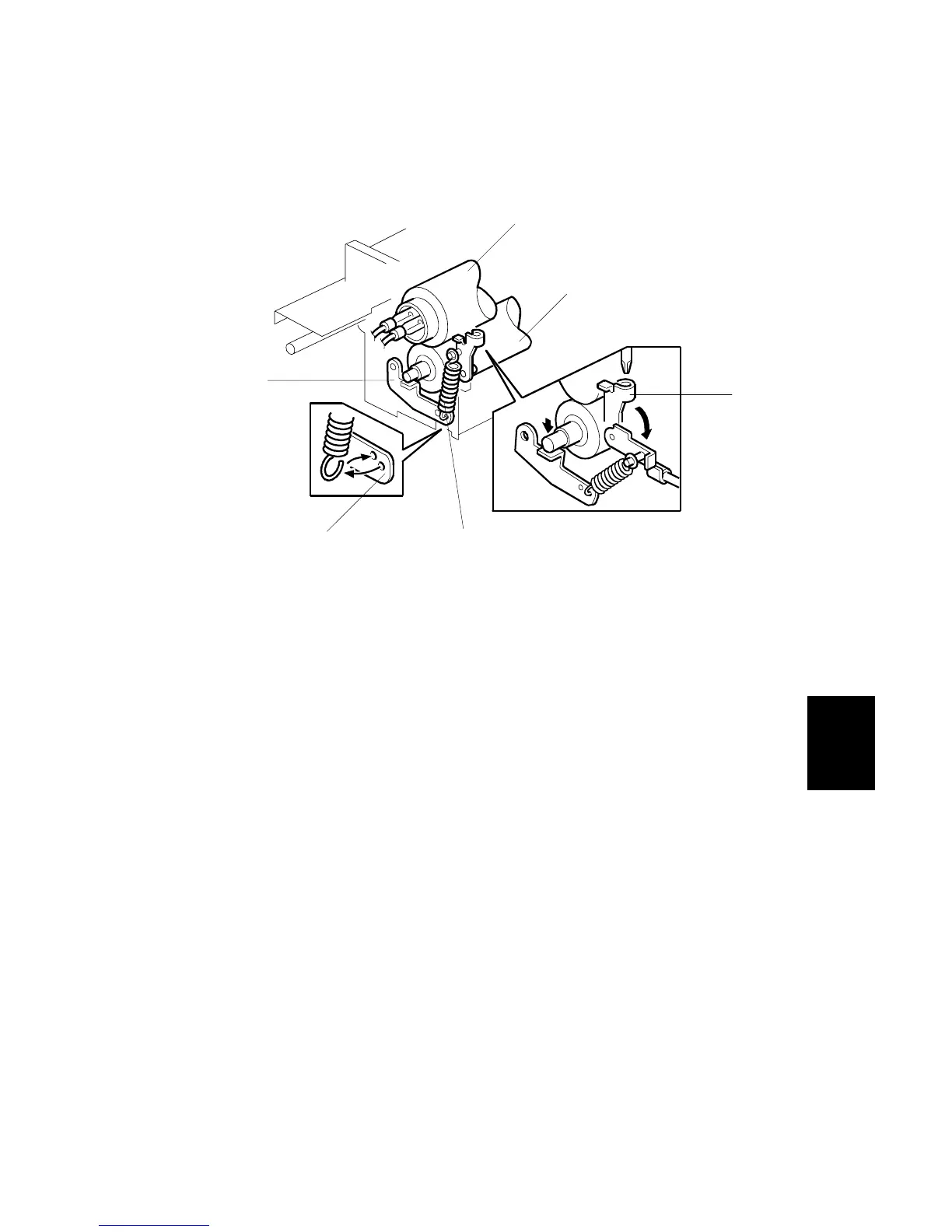

Heavy springs [A], attached to pressure arms [B] below both ends of the pressure
roller [C], keep the roller pressed against the hot roller [D] above.
Release the springs [E] in order to release the pressure from the rollers for
maintenance.
Two holes [F] are provided on each pressure arm for the springs.
NOTE: Normally, the springs should be attached to the lower holes. Attaching the
springs to the upper holes exerts less pressure on the hot roller. Attach the
springs to the upper holes only for especially thin paper.
B246D982.WMFF
[A]
[B]
[C]
[D]
[E]
[F]
