DUPLEX UNIT 15 February 2006
3-90

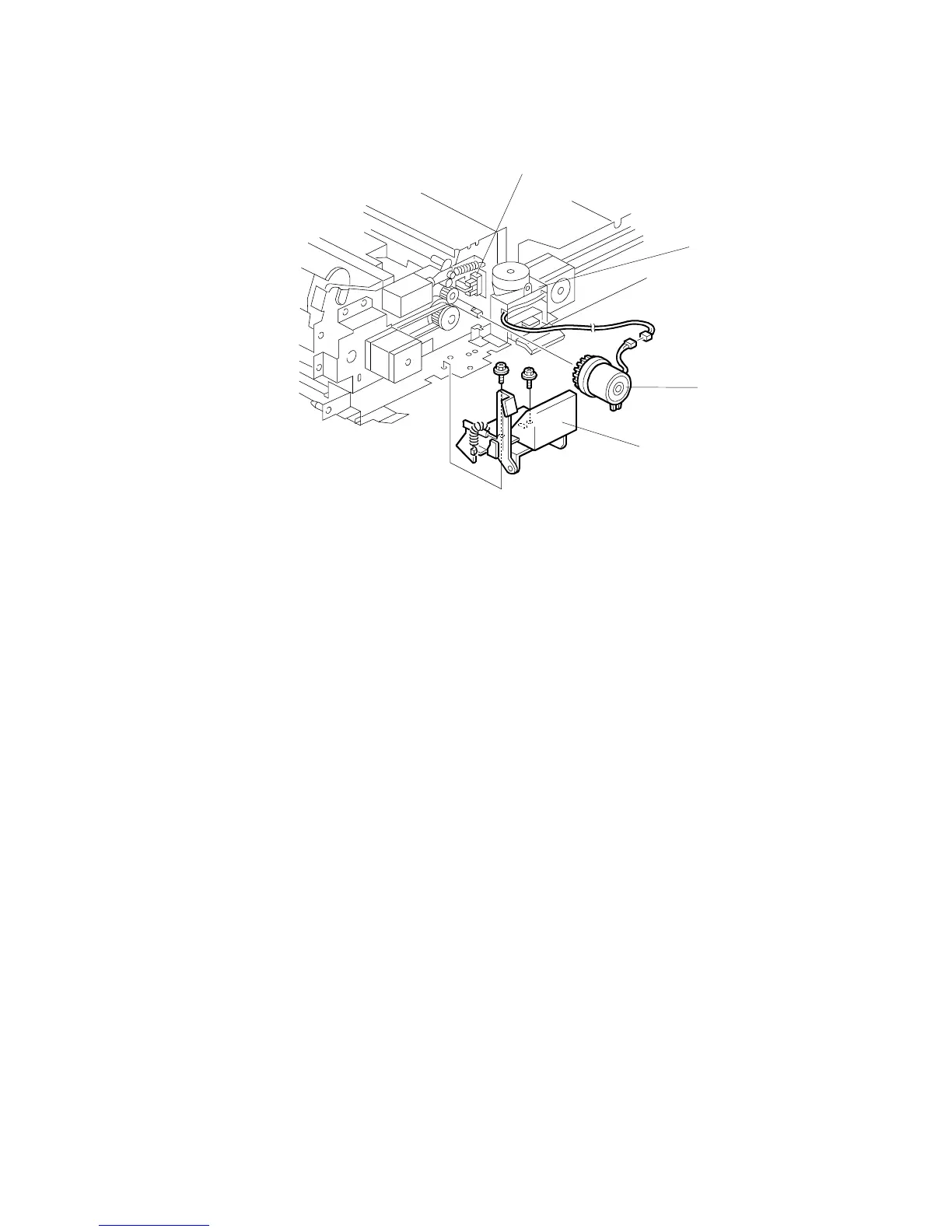

3.10.5 DUPLEX TRANSPORT CLUTCH/JOGGER HP SENSOR
[A]: Duplex unit release lever ( x 2)
[B]: Jogger motor bracket (harnesses x 4,  x 3)
[C]: Transport clutch (harness x 1,  x 1)
• To release the clutch, push in the catch pawl on the side of the shaft.
[D]: Jogger HP sensor (spring x 1,  x 2,  x 1)
B246R1042.WMF
[A]
[C]
[D]
[B]
[A]
