FUSING UNIT 15 February 2006
3-62

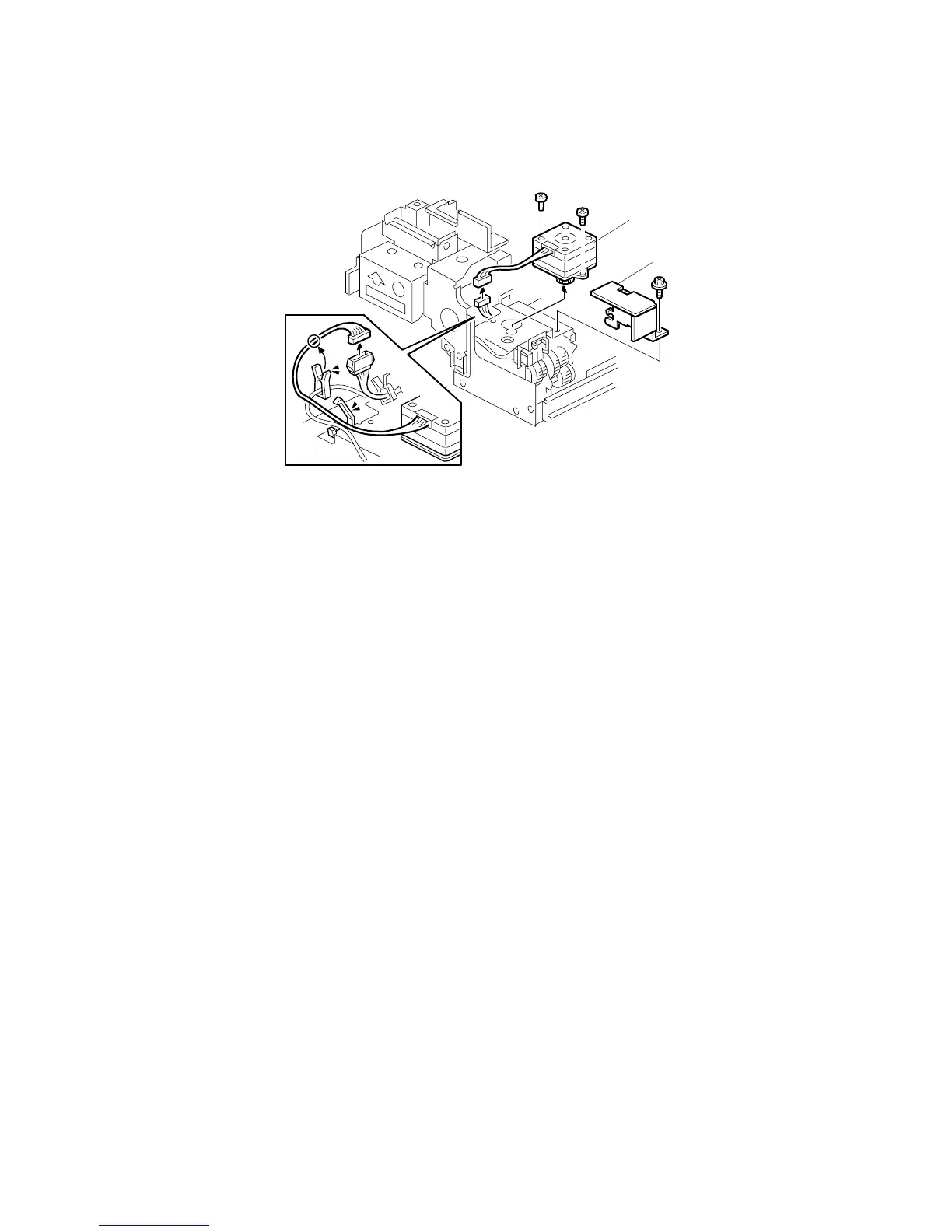

3.9.2 FUSING PRESSURE RELEASE MOTOR (B140 SERIES)
Fusing unit (☛ 3.9.1)
[A]: Bracket ( x 1)
[B]: Motor (= x 2, x 1, x 2)
B246R987.WMF
[A]
[B]
