15 February 2006 COVER INTERPOSER TRAY (B704)
1-95
Installation

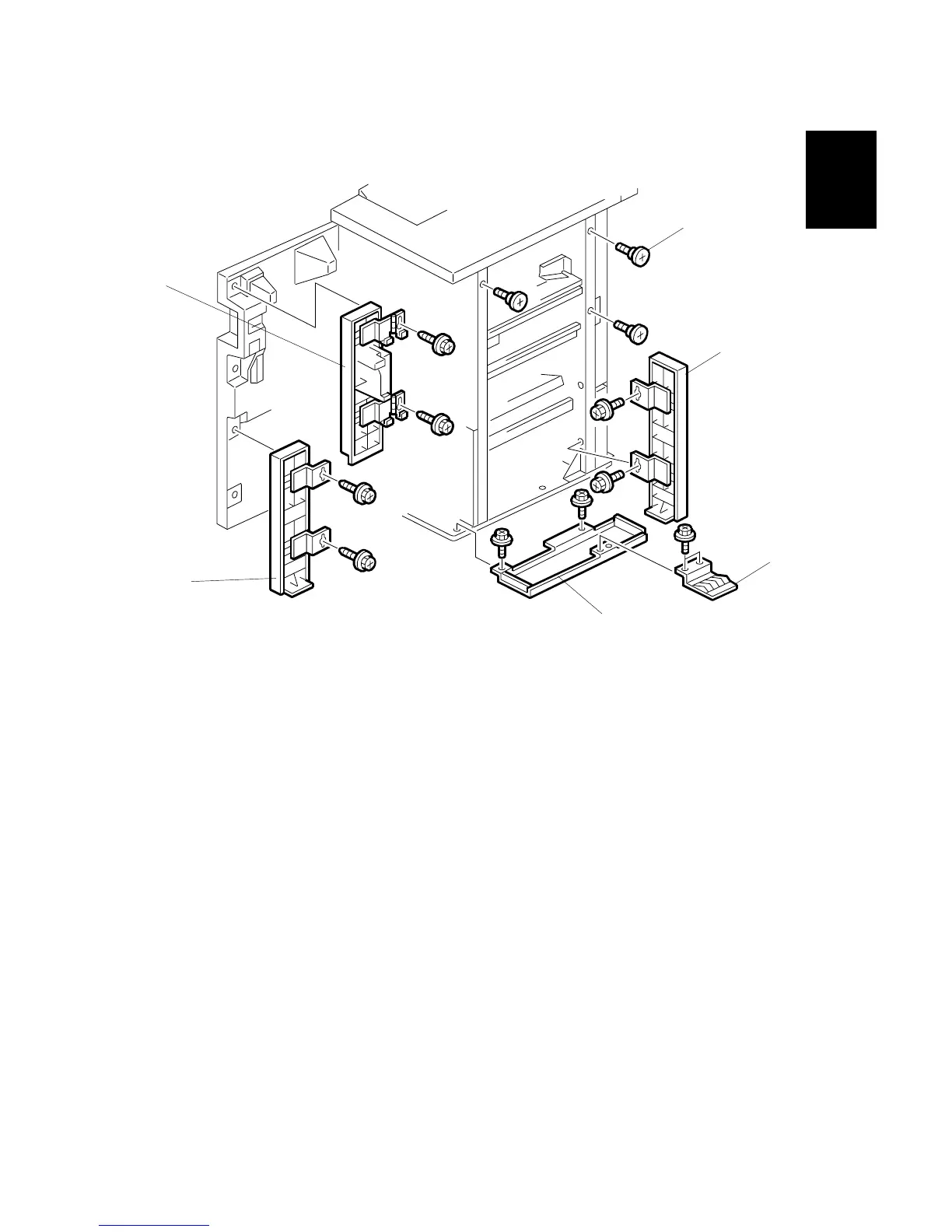

Attach the Extensions to the B706
1. Attach the three shoulder screws [A] $%& (" x 3).
2. If the finisher has been previously installed, remove the ground plate [B] from
the finisher and keep the screws.
3. Attach the bottom plate [C] (" x 2, M3 x 6).
4. Attach the ground plate to the bottom plate (" x 2).
5. Attach the bottom front cover extension [D] (" x 2, M4 x 8).
NOTE: Attach this cover first.
6. Attach the top front cover extension [E] (" x 2, M4 x 8).
7. Set two screws into the holes provided for the rear cover extension [F] (" x 2,
M3 x 6).
8. Set the keyholes of the rear cover extension over of the heads of the screws.
9. Press up on the bottom of the rear cover extension to close the gap at the top
of the cover, then tighten the screws.
B704I110.WMF
[A]
[B]
[C]
[D]
[E]
[F]
$
%
&
To Next Page
