Ricoh MT-C1 User Manual

SCANNER 15 February 2006
3-18

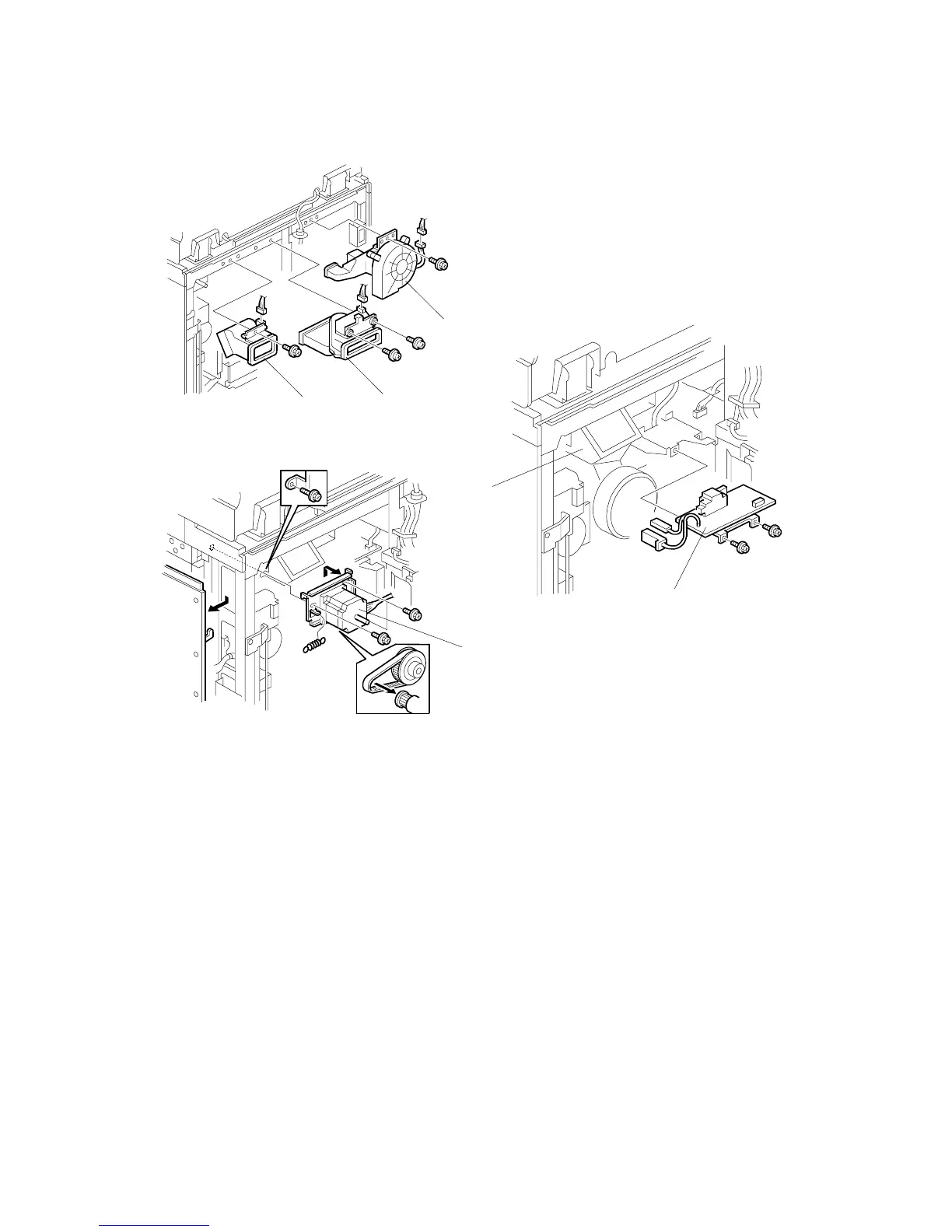

3.4.8 SCANNER MOTOR
Right upper cover (☛ 3.3.3)
Controller/IPU panel door
Flywheel ( x 3)
[A]: Drum cooling fan ( x 1,  x 1)
[B]: Charge power pack cooling fan ( x 2,  x 1)
[C]: Exhaust fan ( x 1,  x 1)
[D]: Development power pack ( x 2,  x 3)
[E]: Vent ( x 2)
[F]: Scanner motor ( x 1, harnesses x 2,  x 3, timing belt x 1)
Re-assemble the scanner, then do the scanner and printer adjustments. (☛ 3.14)
B246R916.WMF
B246R917.WMF
B246R918.WMF
[A]
[B]
[C]
[D]
[E]
[F]
