Ricoh MT-C1 User Manual

15 February 2006 OVERVIEW
6-5
Detailed
Descriptions

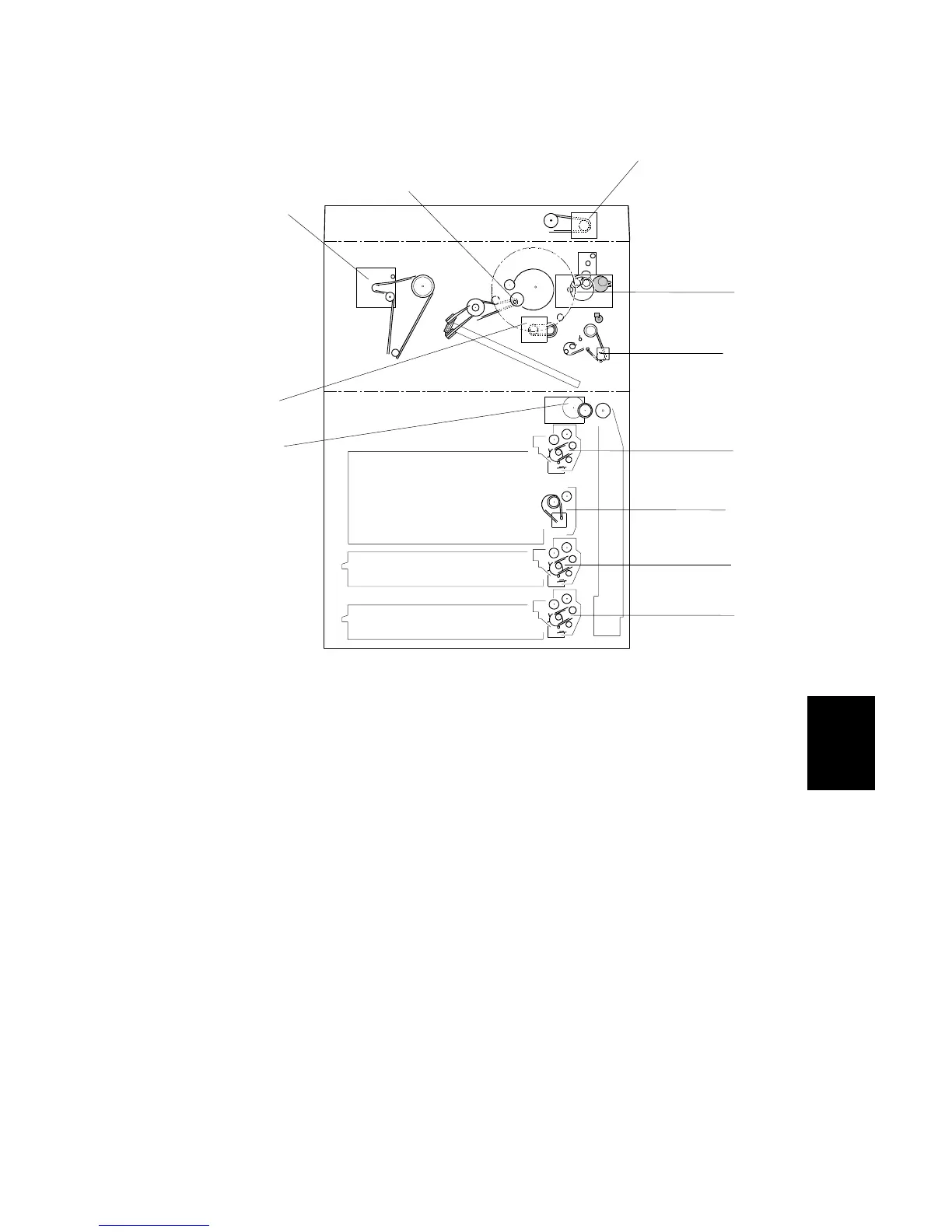

6.1.3 DRIVE LAYOUT
1. Scanner Motor
2. Drum Motor
3. Fusing/Exit Motor
4. Registration Motor
5. Toner Collection Motor
6. Paper Feed Motor 3
7. Paper Feed Motor 2
8. Lower Relay Motor
9. Paper Feed Motor 1
10. By-pass Motor
11. Development Motor
B246D801.WMFF
3
6
1
4
5
7
8
9
10
11
2
