15 February 2006 FUSING UNIT

3-69

Replacement

Adjustment

3.9.6 WEB MOTOR AND WEB END SENSOR

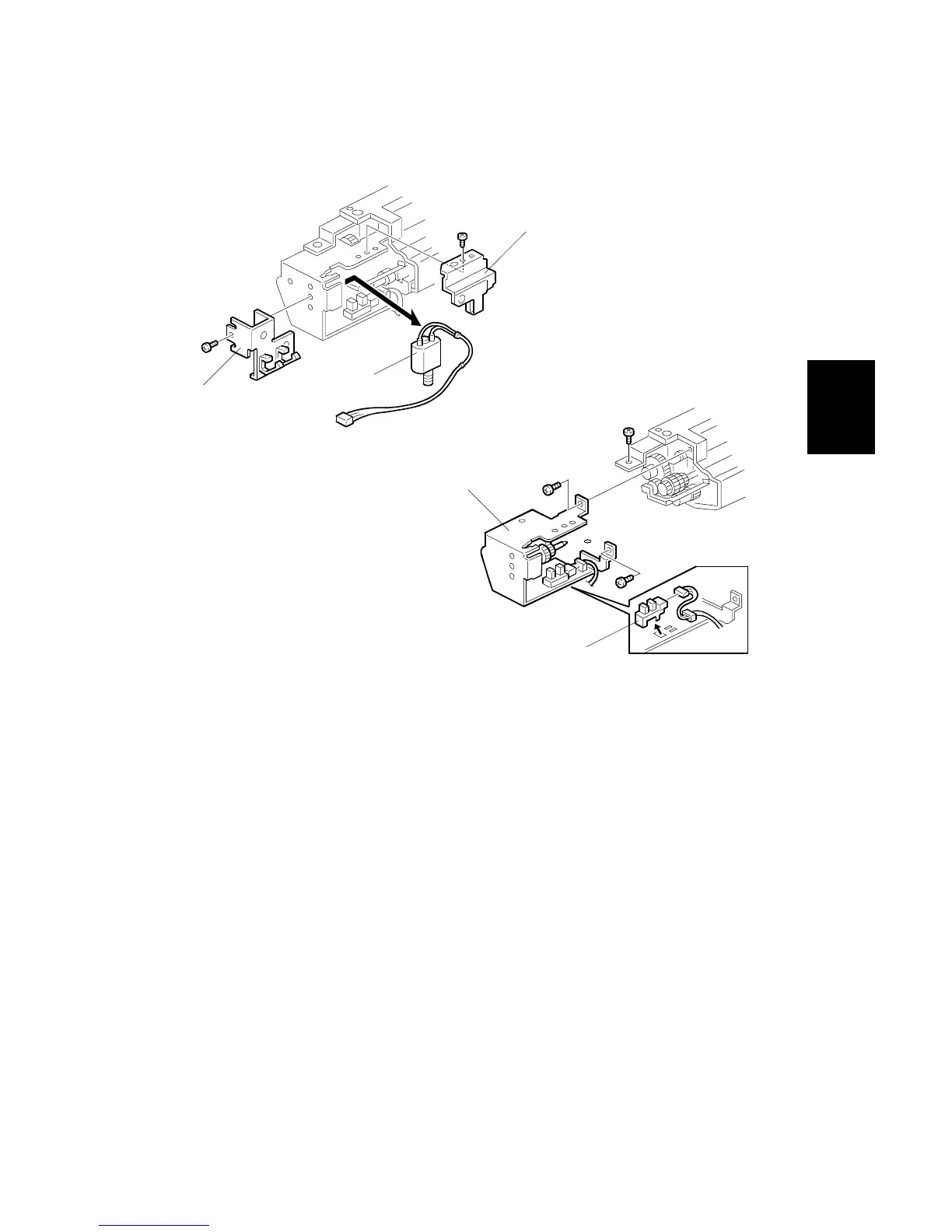

Web unit and end cover (☛ 3.9.5)

[A]: Bracket ( x 1)

[B]: Web motor positioning bracket ( x 1)

[C]: Web motor

[D]: Web motor/sensor mount ( x 3)

[E]: Web end sensor ( x 1, harness x 1)

NOTE: At reassembly, make sure that the harness of the web driver motor is not

pinched by the fusing inner cover

B246R997.WMF

B246R999.WMF

[A]

[B]

[C]

[D]

[E]
