Ricoh MT-C1 User Manual

15 February 2006 SCANNER
3-25
Replacement
Adjustment
3.4.11 SCANNER HEATER
Exposure glass (☛ 3.4.2)
Operation panel (☛ 3.3.1)

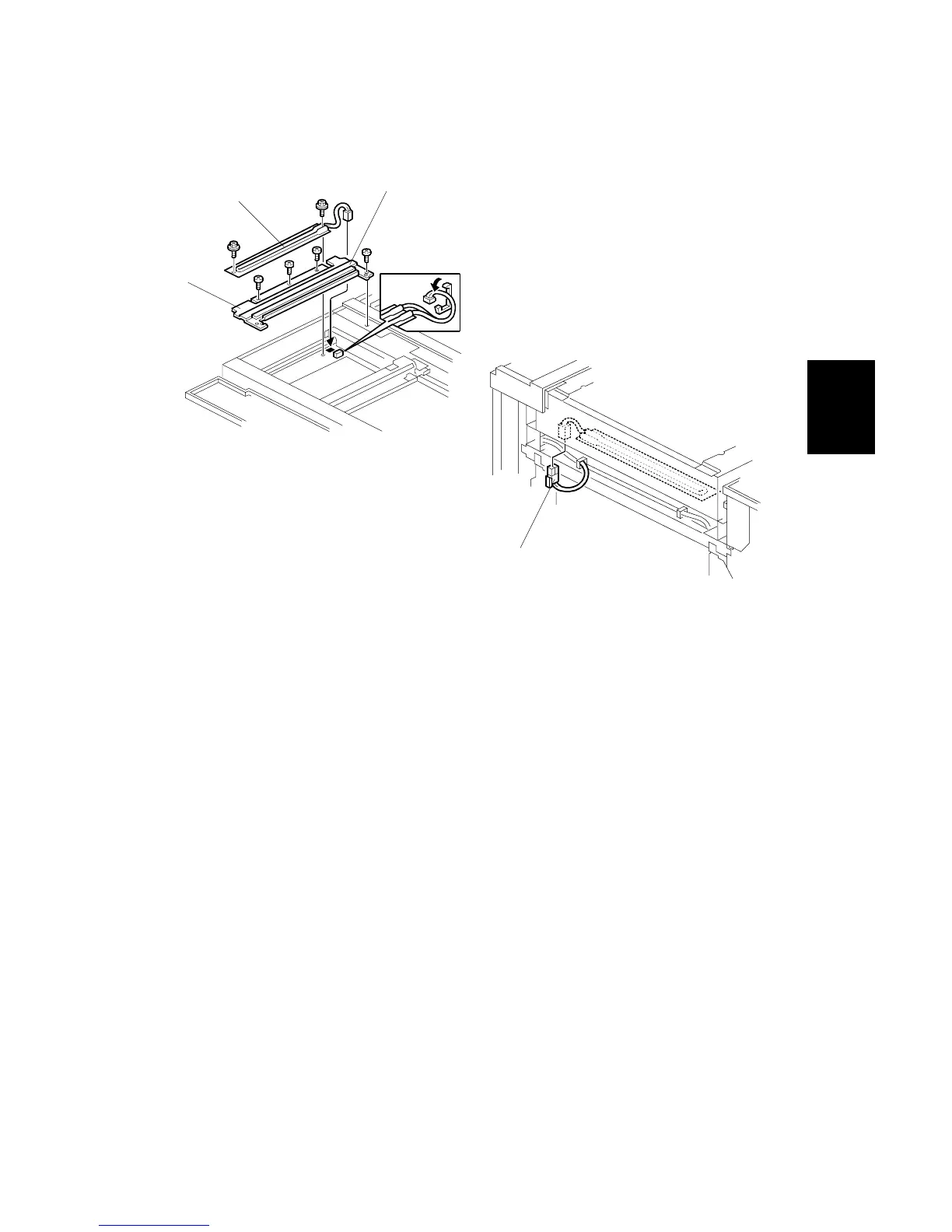

[A]: Scanning glass plate ( x 4).
[B]: Scanner heater ( x 2).
[C]: Fasten the cable with the harness clamp.
[D]: Fasten the connector on the left side of the machine ( x 1).
B246R927.WMF
B246R928.WMF
[A]
[B]
[C]
[D]
