Ricoh MT-C1 User Manual

PCBS AND HDD 15 February 2006
3-118
3.12.2 CONTROLLER BOARD
B064 Series: Controller Board
Rear upper cover (☛ 3.3.5)
[A]: Swing-out the PCB unit ( x 2)
[B]: Controller cover ( x 9)
[C]: Controller board ( x 2,  x 2)
• Pull the controller board out in
the direction of the arrow.
Important:
Remove the NVRAM from the old
controller board and install it on the
new board.

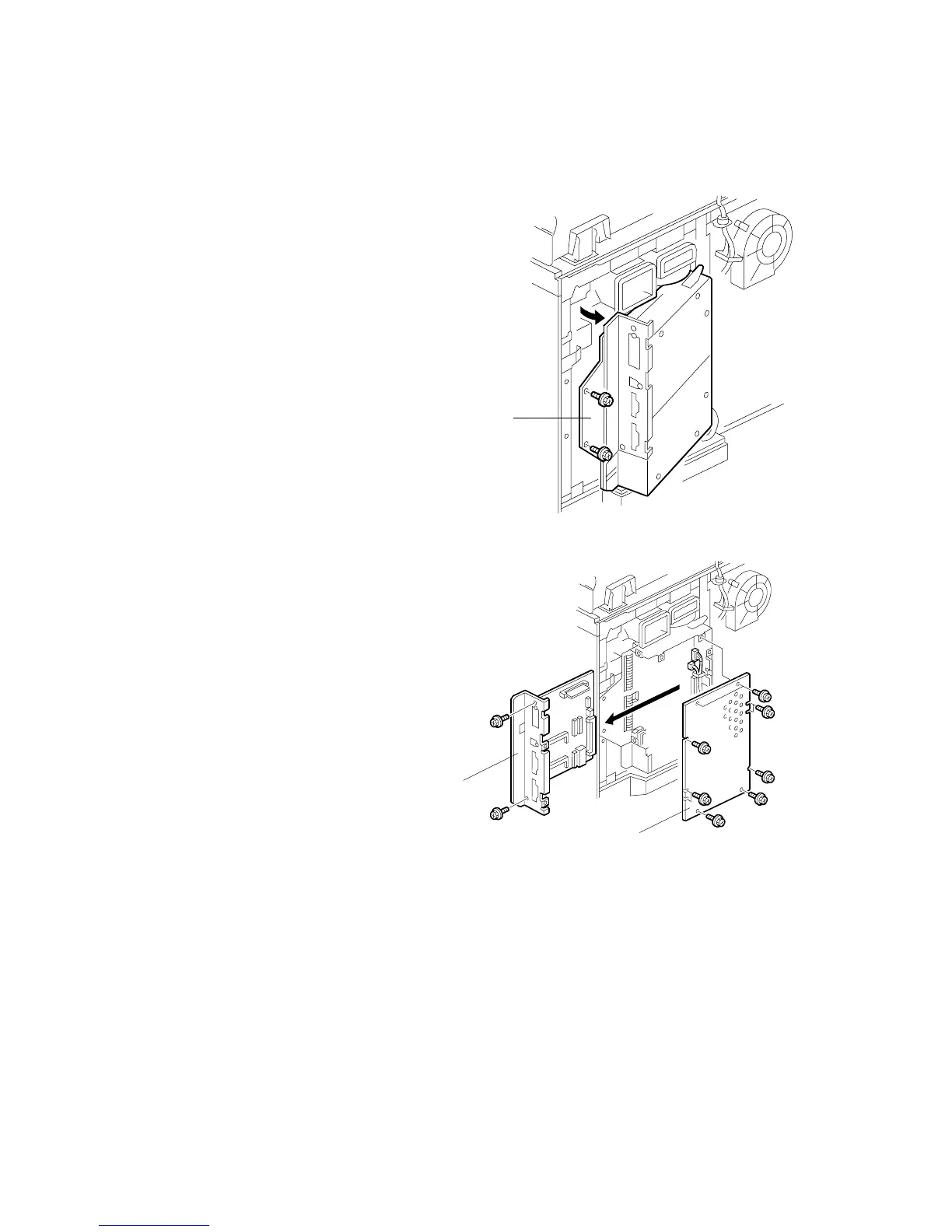

B246R1022.WMF
B246R1021.WMF
[A]
[B]
[C]
