15 February 2006 PUNCH UNIT (B531/B812)
1-59
Installation
1.11 PUNCH UNIT (B531/B812)
The Punch Unit B531/A812 can be installed only in the 3000-Sheet Finisher
B478/B706.

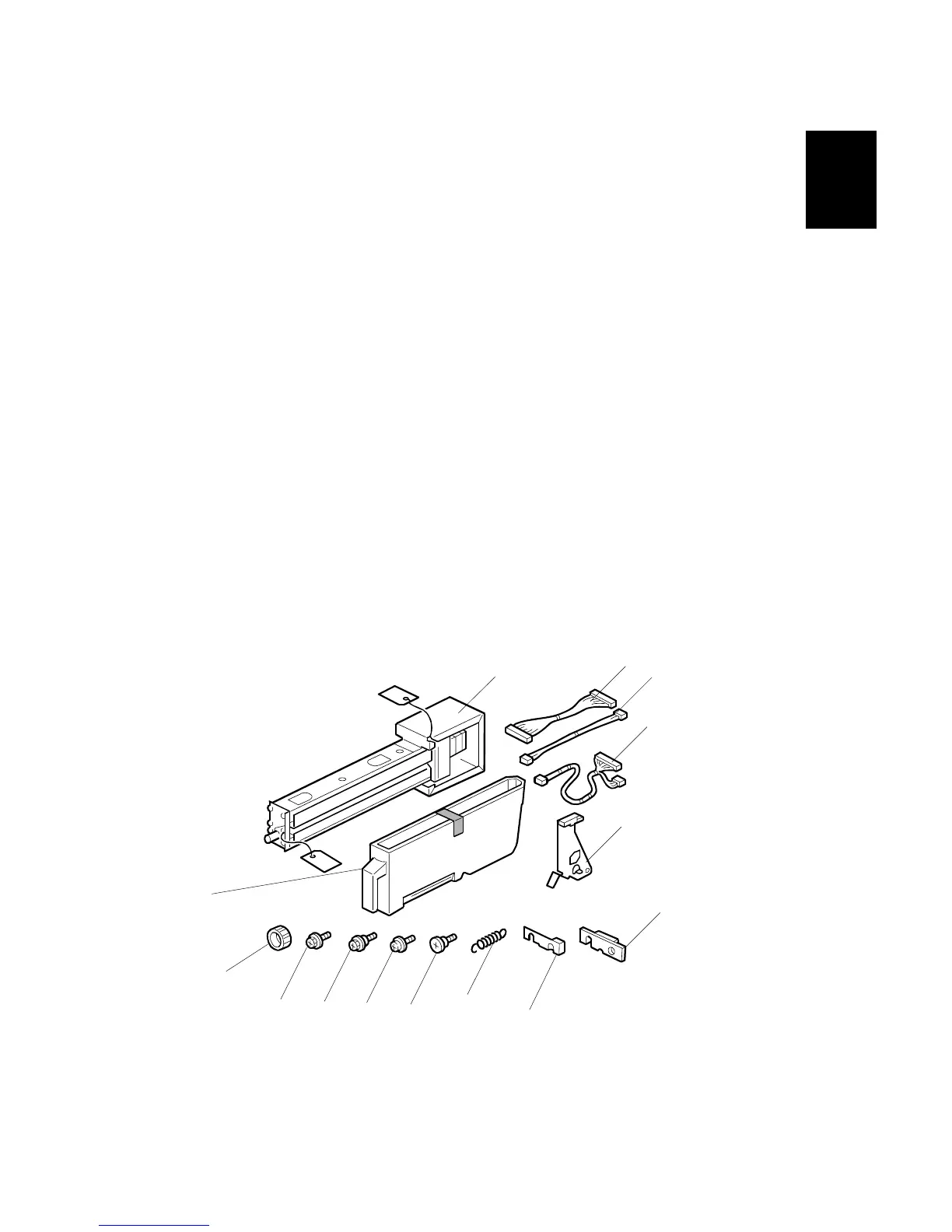

1.11.1 ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description Q’ty
1. Punch unit.......................................................................... 1
2. Harness Connector Cable - PCB ....................................... 1
3. Harness Connector Cable - HP Sensor 2 .......................... 1
4. Harness Connector Cable - HP Sensor 1, Hopper Full...... 1
5. Sensor Arm and Sensor .................................................... 1
6. Spacer (2 mm)................................................................... 1
7. Spacer (1 mm)................................................................... 2
8. Spring ................................................................................ 1
9. Step Screw (large) (M4 x 11)............................................. 1
10. Tapping Screw (M4 x 10)................................................... 2
11. Step Screw (small) (M3 x 4)............................................... 1
12. Machine Screw, Washer (M4 x 6)...................................... 1
13. Knob .................................................................................. 1
14. Punch Waste Hopper......................................................... 1
B531I001.WMF
10
1
2
7
3
4
5
6
8
9
11
12
13
14
