15 February 2006 PAPER FEED
6-97
Detailed
Descriptions
6.11.6 PAPER SIZE DETECTION
Tandem Tray (Tray 1)
The tandem tray does not have paper size detection switches. Every time the
paper size is changed by moving the front and back fences, you must enter the
selected paper size using SP5959-001.
Universal Cassettes (Tray 2, 3)

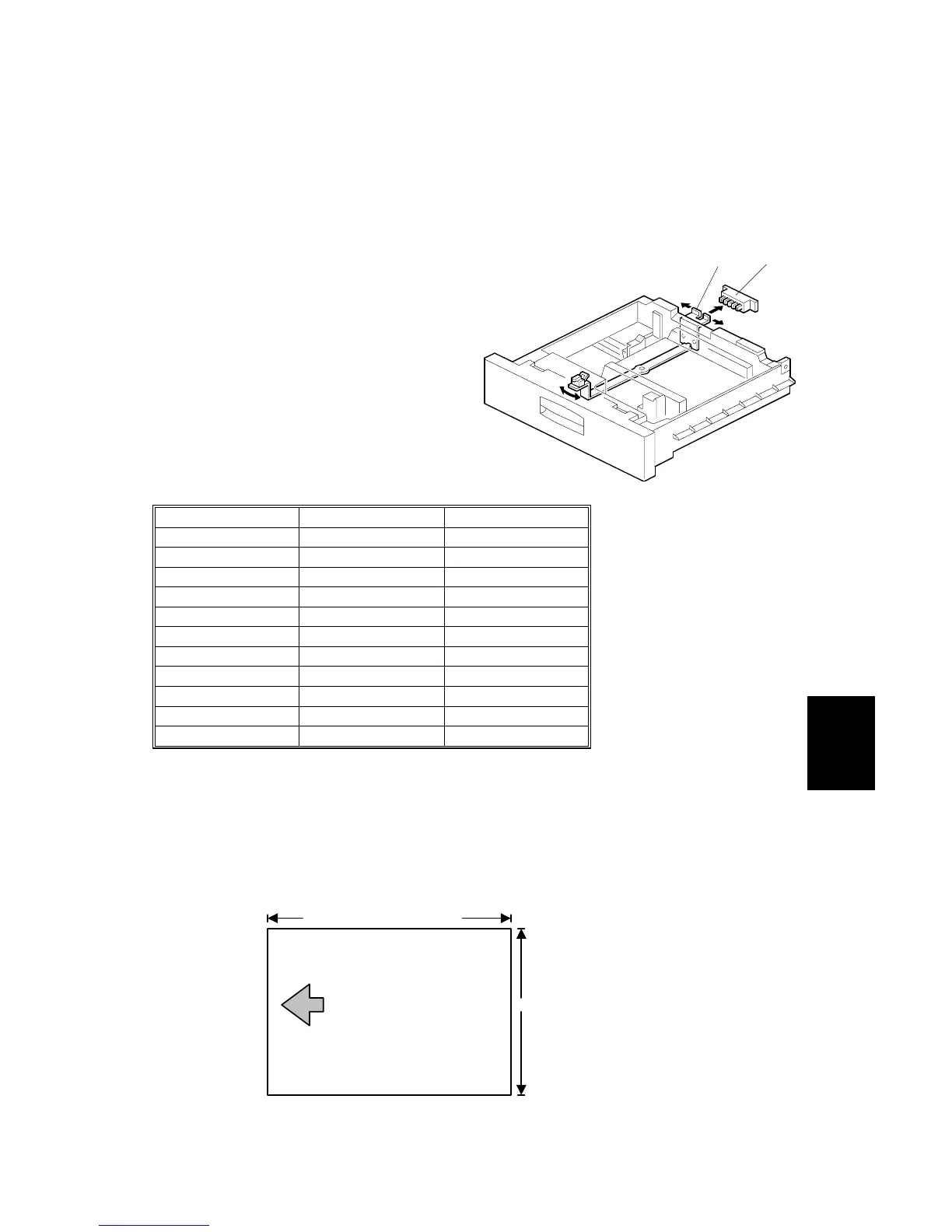

The paper size switch [A] detects the
paper size with 5 microswitches. The
actuator plate [B], attached to the rear
of the paper tray, actuates the paper
size switch.
The output from the sensor depends on
the position of the dial, as shown in the
table.
Sensor Outputs A4/A3 Version LT/DLT Version
01111 A3 SEF 11" x 17" SEF
00111 81/4" x 13" SEF 81/2" x 14" SEF
10011 A4 SEF 81/2" x 11" SEF
01001 A4 LEF 81/2" x 11" LEF
00100 81/2" x 13" SEF 51/2" x 81/2" SEF
00010 A5 SEF 51/2" x 81/2" LEF
00001 A5 LEF 8" x 101/2" SEF
10000 — 71/4" x 10" SEF
11000 — Set by SP 5129
11100 — Not used
11110 * *
0: Actuated 1: Deactuated
SP5129: The machine can detect 8" x 13" (default), 8½" x 13", or 8¼" x 13".
If the switch is set to the asterisk (*), a range of paper sizes (illustrated below) can
be selected, but the size must be entered with a UP mode.
B246D956.WMFF
Special Size Setting Range
210 ~ 432 mm (8.3~17")
148 ~ 297 mm (5.8~11.7")
Direction of Feed
B246D957.WMFF
[A]
[B]
