15 February 2006 OPERATION PANEL AND EXTERNAL COVERS
3-7
Replacement
Adjustment
3.3.3 RIGHT COVERS
1. LCT entrance guide cover [A] ( x 2)
2. Right upper cover [B] ( x 2)
• To remove the right cover, remove the LCT entrance guide plate, open the
by-pass tray, then slide the right upper cover down to remove it.
• When re-attaching, before tightening the screws make sure that 1) the tabs
[C] on the cover are engaged with the grooves on the machine, and 2) the
catches on the cover are engaged with the shoulder screws.
3. Lower right cover [D] ( x 2)
• After removing the screws, slide the cover down to remove it.
• When re-attaching, before tightening the screws make sure that the tabs [E]
on the cover are engaged with the grooves on the machine.

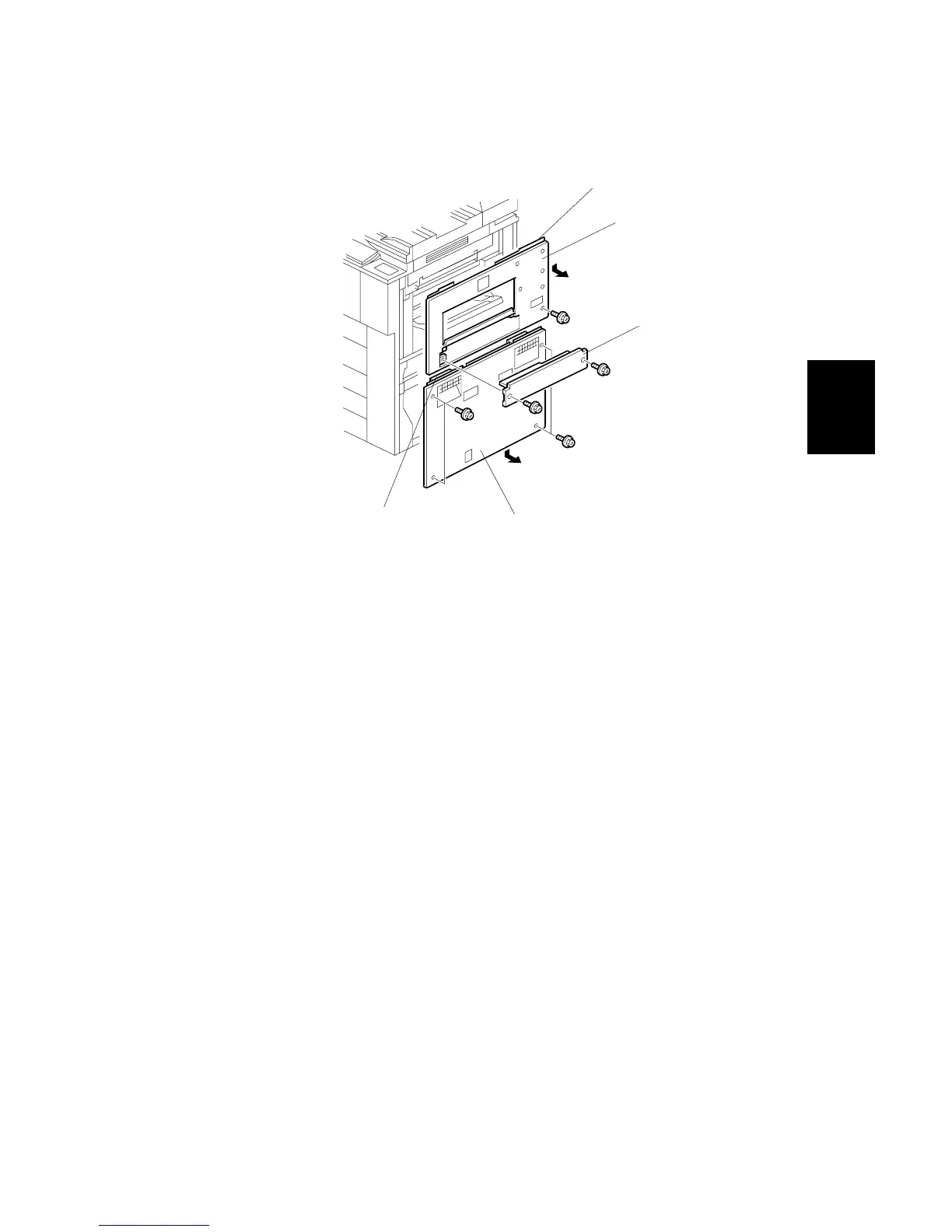

B246R903.WMF
[A]
[B]
[C]
[D]
[E]
