15 February 2006 IMAGE FUSING AND PAPER EXIT
6-115
Detailed
Descriptions
6.12.2 FUSING MECHANISM
B064 Series

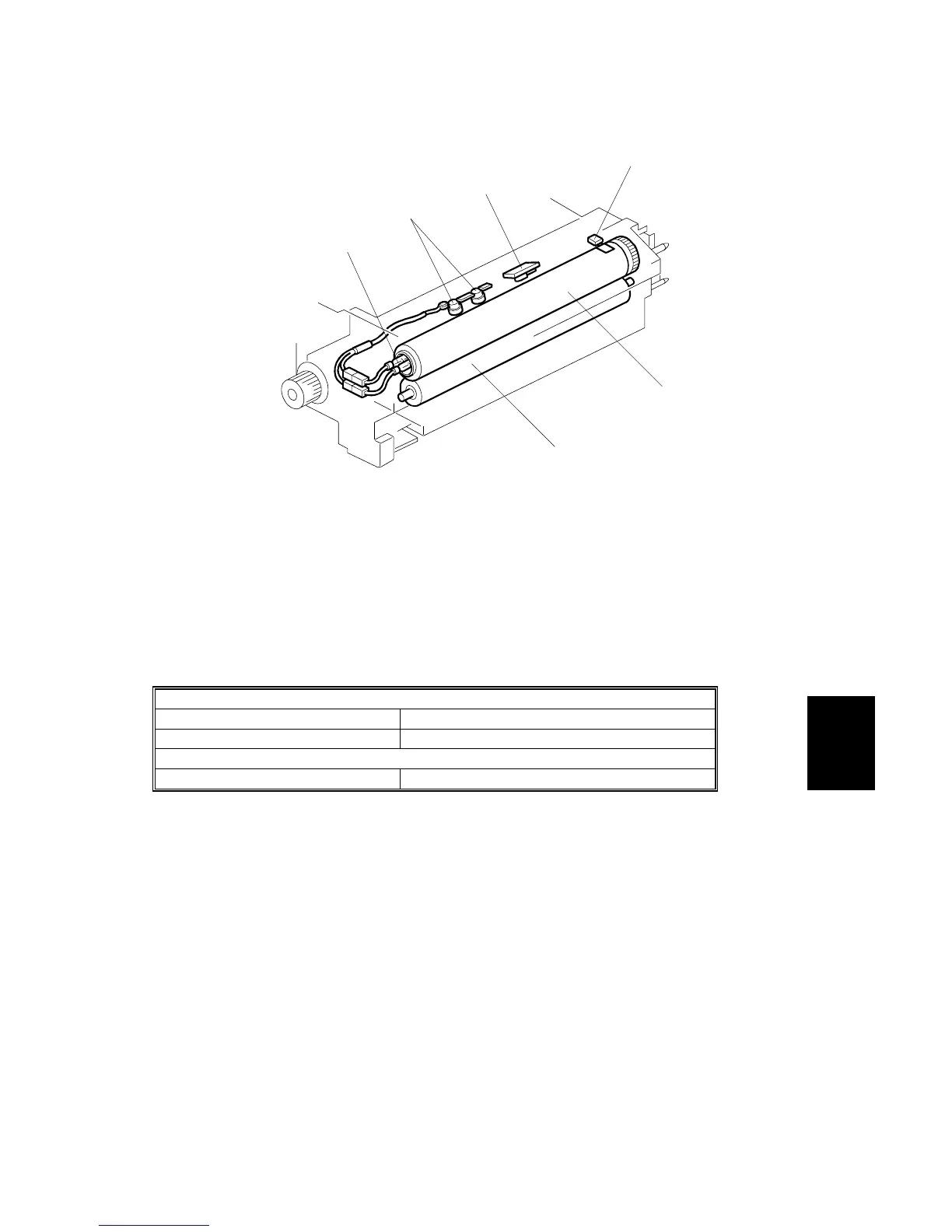

The hot roller [A] and pressure roller [B] fuse the toner to the paper.
Two fusing lamps [C] (550 W) are inside the hot roller.
Two thermostats [D] are positioned above the hot roller near the center.
One thermistor [E] is also positioned above the hot roller near the center.
Another thermistor [F] is in contact with the end of the hot roller.
Thermistors
Center (non-contact) thermistor Temperature control
End (contact) thermistor Overheating protection
Thermostats
*1
Center (non-contact) thermostats Overheating protection
*1
If the thermostats trigger an alert, the thermostat requires replacement.
A fusing exit sensor, located between the hot roller and paper exit roller, detects
paper jams inside the fusing unit.
B246D980.WMFF
[A]
[B]
[C]
[D]
[E]
[F]
