Ricoh MT-C1 User Manual

OVERVIEW 15 February 2006
6-4

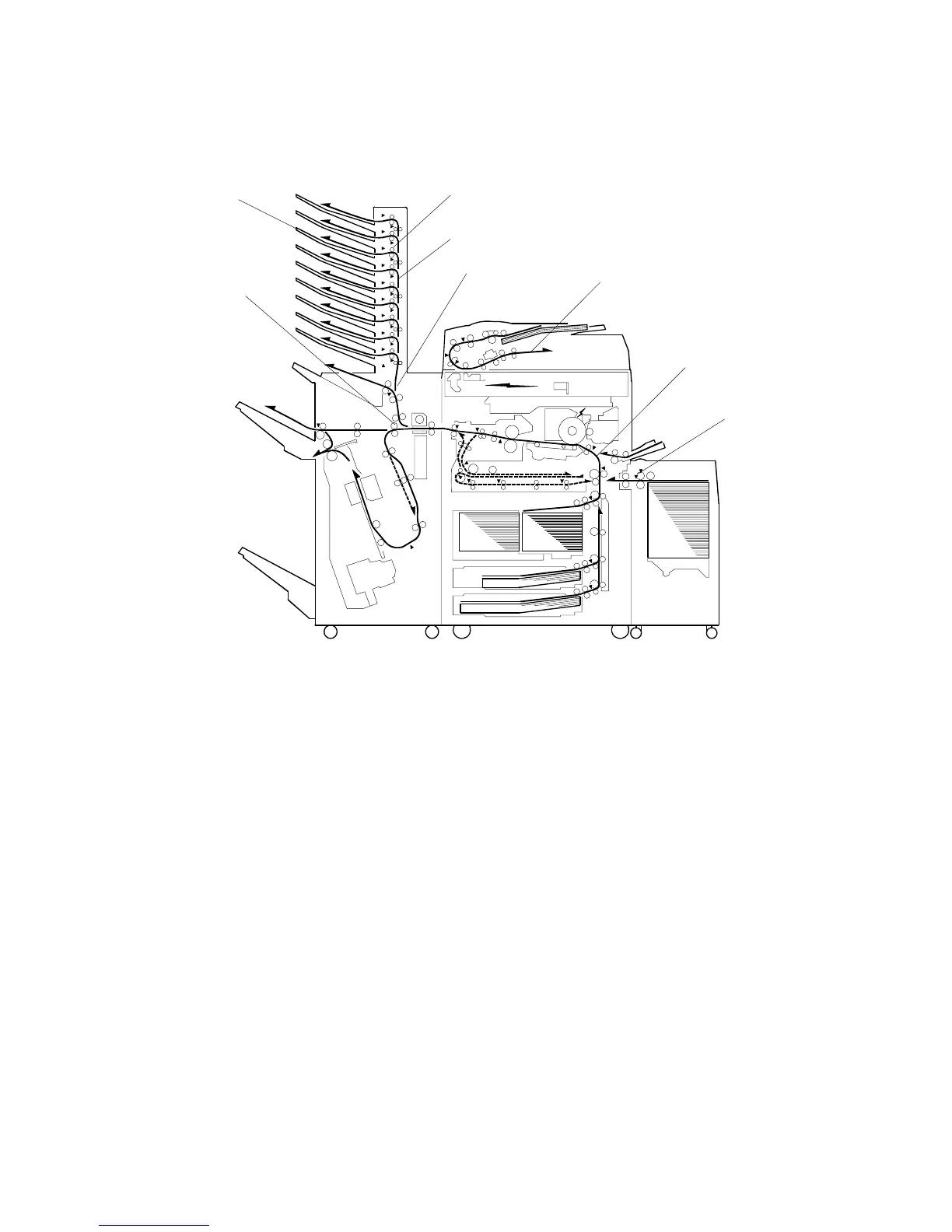

6.1.2 PAPER PATH (WITH 9-BIN MAILBOX)
1. Original Paper Path
2. Vertical Transport Path
3. LCT Feed
4. Selected Trays
5. Turn Gates
6. Mailbox Paper Path
7. Junction Gate (paper goes either up to the
mailbox or out to the finisher’s proof tray)
8. Junction Gates (two junction gates control
the paper path inside the finisher)
B246D852.WMFF
1
2
3
4
5
6
7
8
