Ricoh MT-C1 User Manual

15 February 2006 DRUM UNIT
3-45
Replacement
Adjustment
3.6.15 TONER COLLECTION BOTTLE

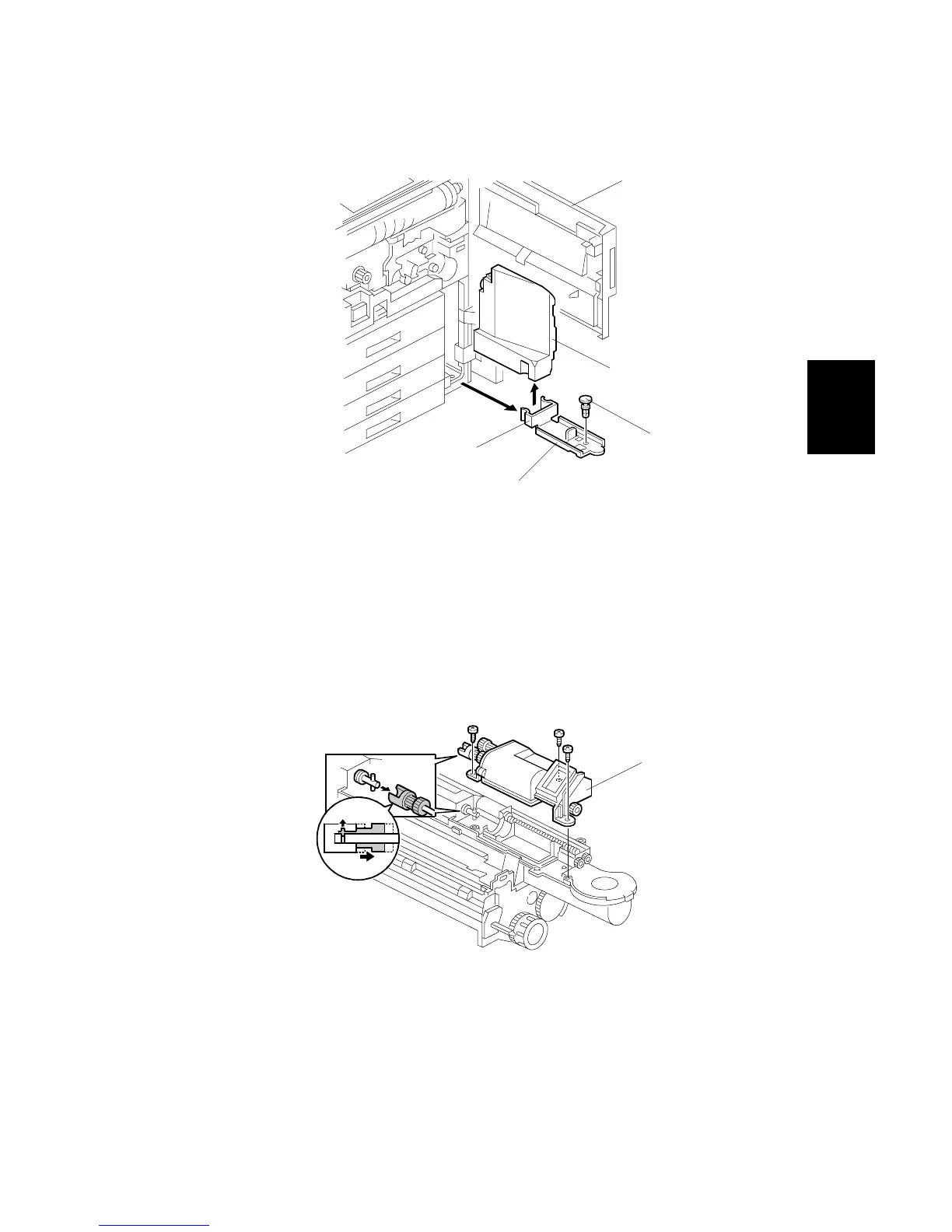

1. Open the front door [A].
2. Remove the lock pin [B], then pull out the toner collection bottle [C] and its base
[D].
3. Detach the bottle from the base clamp [E] and replace it.
3.6.16 TONER SEPARATION UNIT
Development unit (☛ 3.6.1)
[A]: Toner separation unit ( x 3)
B246R959.WMF
B246R960.WMF
[A]
[A]
[B]
[C]
[D]
[E]
