3.12.4 DEVELOPMENT POWER PACK
• Remove rear upper cover (☛ 3.3.5)

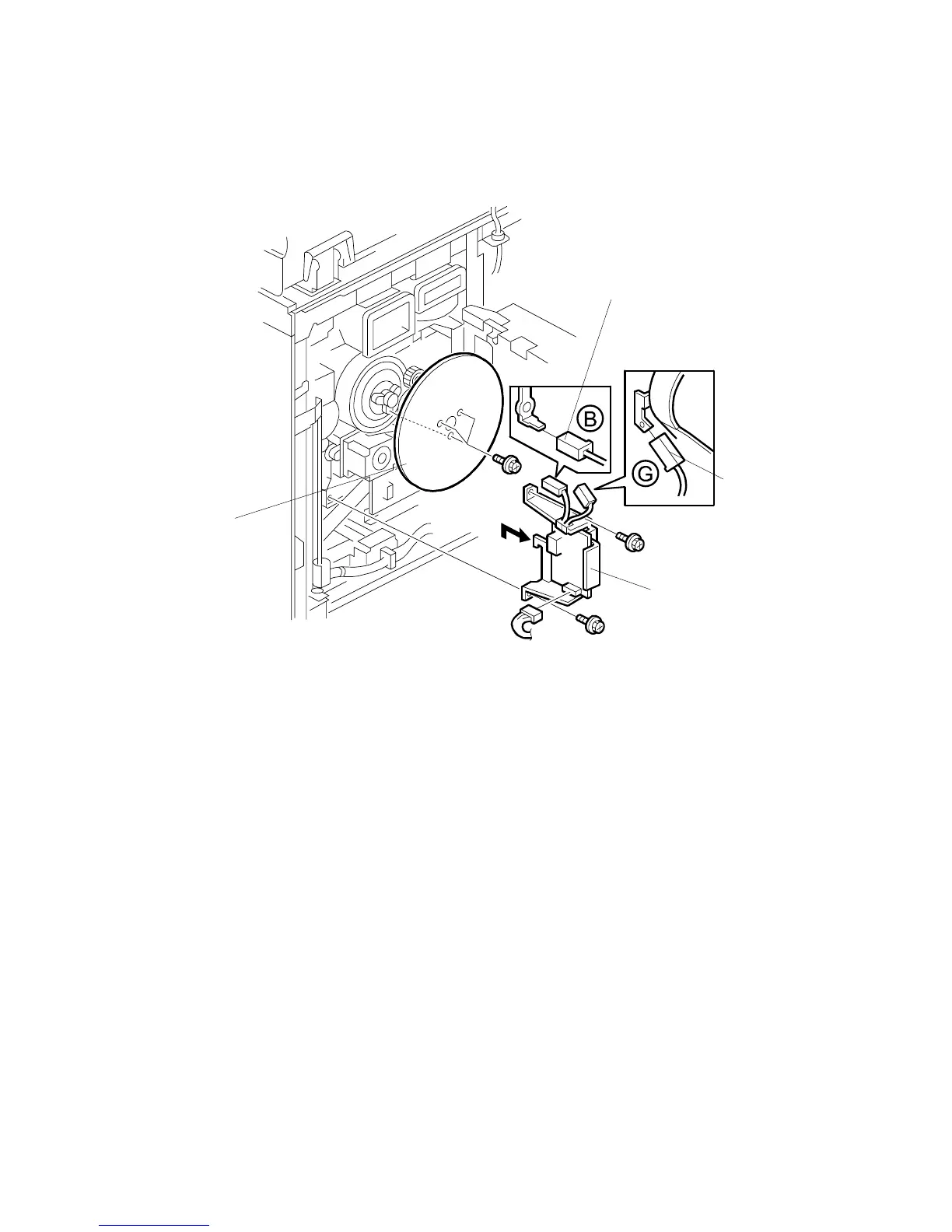

[A]: Flywheel ( x 3)
[B]: Development power pack ( x 2,  x 3)
NOTE: Mark the bayonet connectors [C], [D] with a felt pen to ensure that they are
not connected incorrectly when the power pack is re-connected.
B246R861.WMF
[B]
[C]
[D]
[A]
