Ricoh MT-C1 User Manual

15 February 2006 PCBS AND HDD
3-119
Replacement
Adjustment

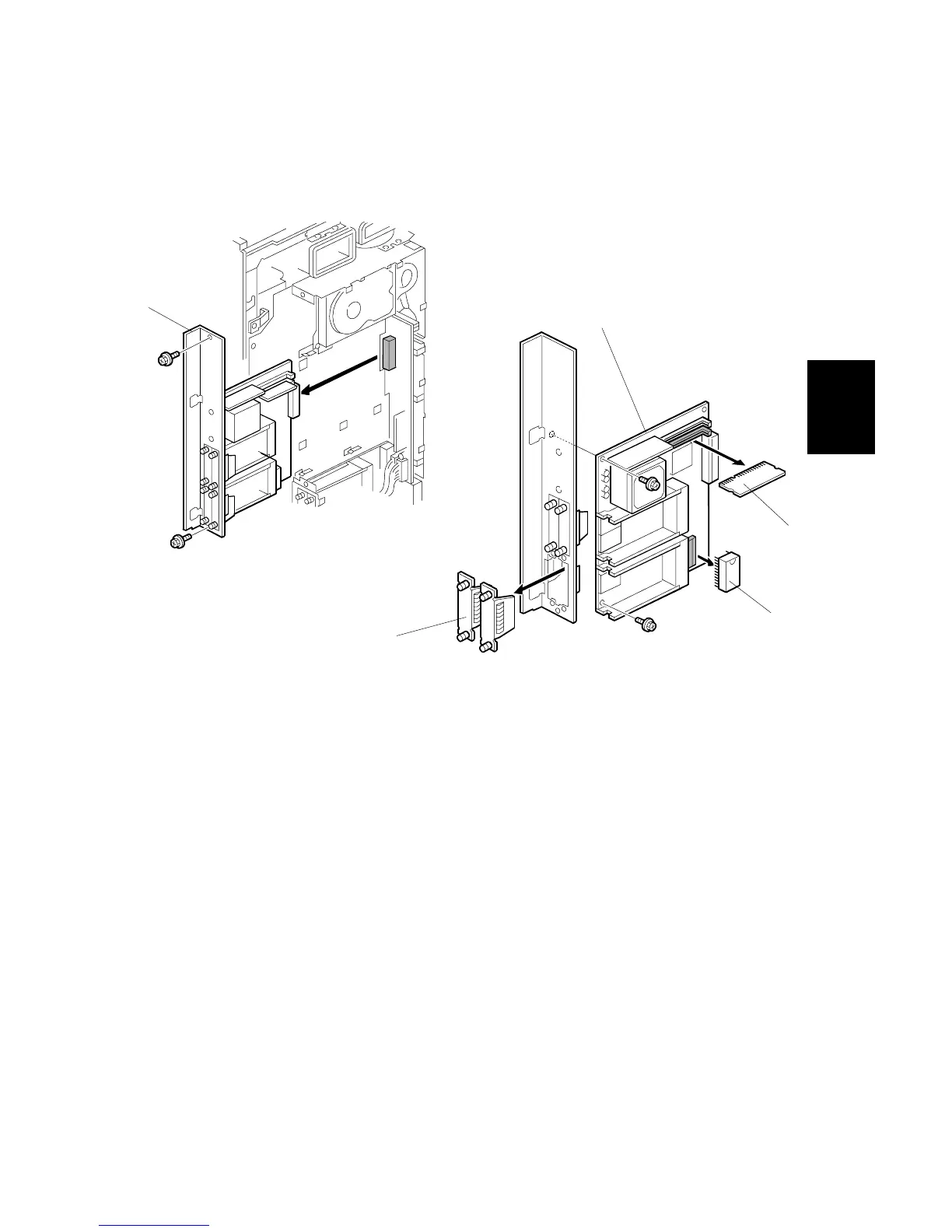

B140 Series: Controller Board
Rear covers (☛3.3.5)
Controller box cover ( x 12)
[A]: Controller board plate ( x 2)
[B]: Lower covers
[C]: Controller board ( x 2)
[D]: Remove the DIMM from the old controller board, and connect it to the new
board.
[E]: Remove the NVRAM from the old controller board, and connect it to the new
board.
B246R1020.WMF
B246R1024.WMF
[A]
[B]
[C]
[D]
[E]
