IMAGE FUSING AND PAPER EXIT 15 February 2006
6-122

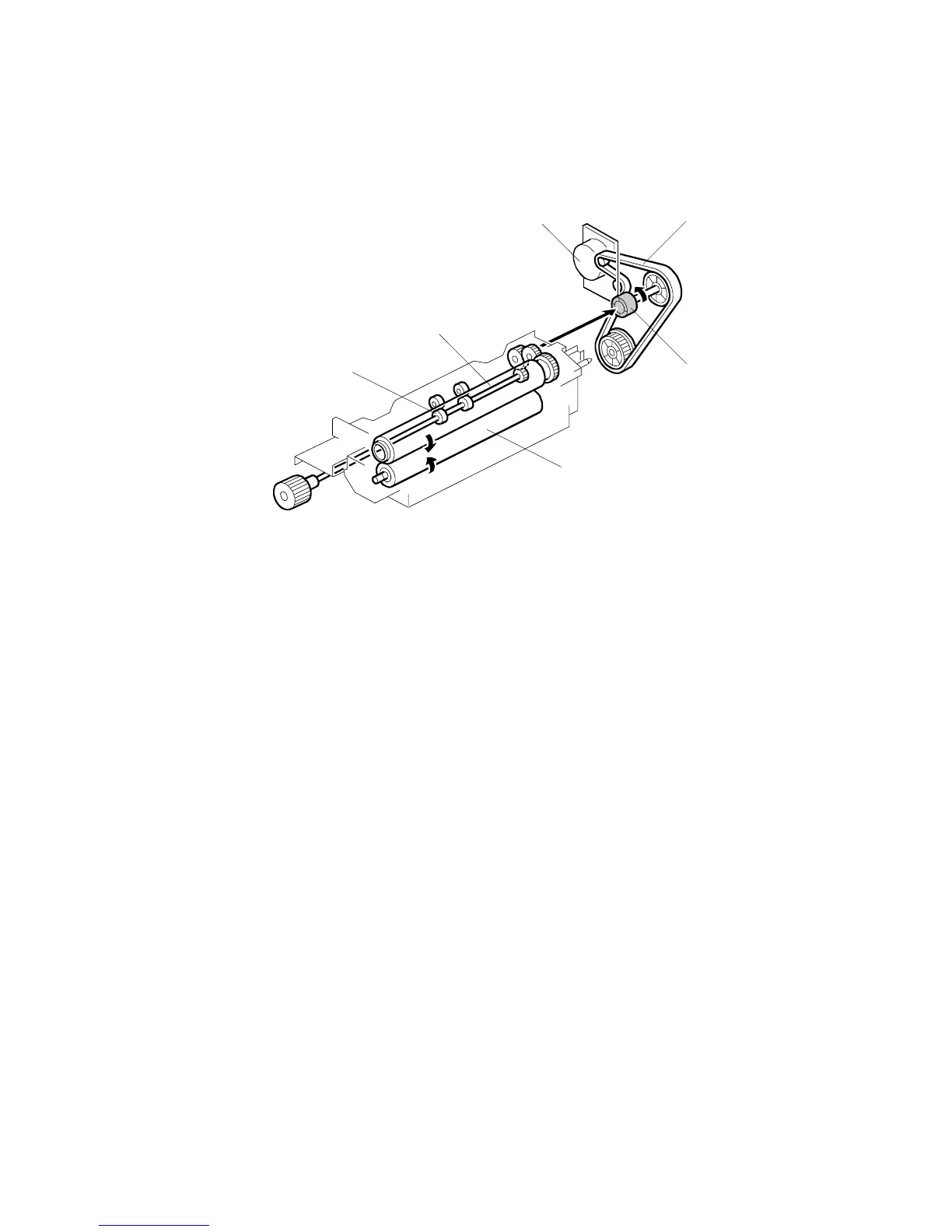

6.12.6 FUSING UNIT DRIVE
Fusing/exit motor [A] → timing belt [B] → gear coupling [C] → fusing unit
Inserting the fusing unit engages the coupling [C].
The pressure roller [D] is driven by friction between the pressure roller and the hot
roller [E].
The fusing unit exit rollers [F] are driven through some gears.
B246D987.WMFF
[B]
[A]
[C]
[D]
[E]
[F]
