15 February 2006 PAPER FEED
3-111
Replacement
Adjustment

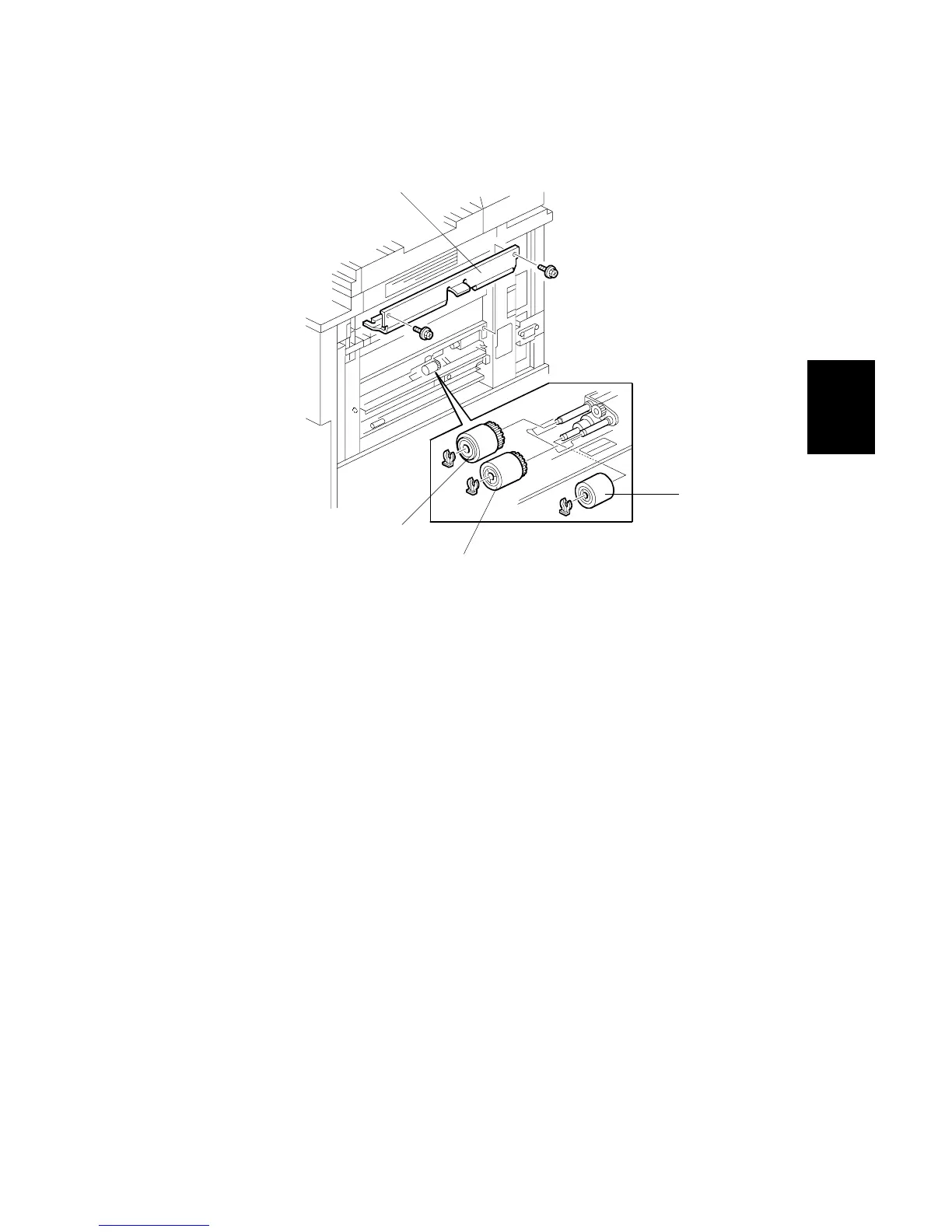

3.11.12 BY-PASS TRAY ROLLERS
Right covers (☛ 3.3.3)
By-pass tray (☛ 3.11.11)
[A]: By-pass cover ( x 2)
[B]: Feed roller ( x 1)
[C]: Pick-up roller ( x 1)
[D]: Separation roller ( x 1)
NOTE: 1) Even though the FRR mechanisms for the tandem tray (Tray 1),
universal trays (Tray 2, Tray 3) by-pass tray and ADF are similar, the
only rollers that are interchangeable are the tandem and universal trays
(Trays 1, 2, 3).
2) Do not touch the surface of new rollers during replacement.
B246R1092.WMF
[A]
[B]
[C]
[D]
To Next Page
