15 February 2006 COPY CONNECTOR KITS
1-119
Installation
ACCESSORY CHECK

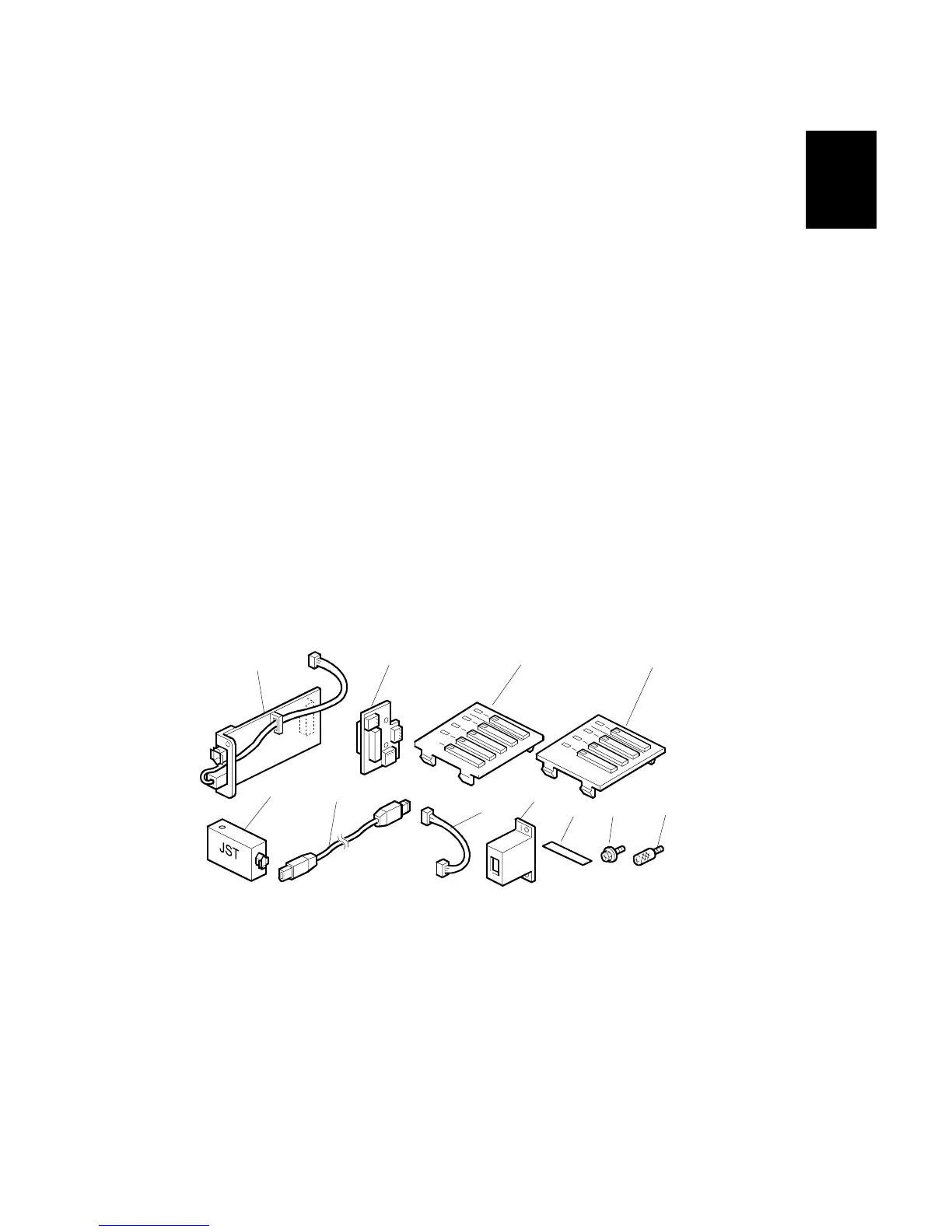

Check the accessories and their quantities against this list:
Description Q’ty
1. Copy Connector Board .......................................................... 2
2. MLB Interface Board.............................................................. 2
3. Interface Cable ...................................................................... 3
4. Interface Harness – Power Line............................................. 2
5. Hub ........................................................................................ 2
6. Key Top – Application............................................................ 6
7. Key Top – Printer................................................................... 2
8. Anti-static Cap ....................................................................... 2
9. Knob Screw ........................................................................... 4
10. Decal – Copy Connector........................................................ 4
11. Tapping Screw – M3 x 8 ....................................................... 4
B246MTC1CCK.WMF
1
2
3
4
5
6
7
8
9 10 11
