PAPER FEED 15 February 2006
3-106
3.11.8 FEED UNIT
Front door (☛ 3.3.2)
LCT entrance guide cover and right lower cover (☛ 3.3.3)
• If the LCT is connected, disconnect it and pull it away from the machine.
Pull out all three trays (do not remove).

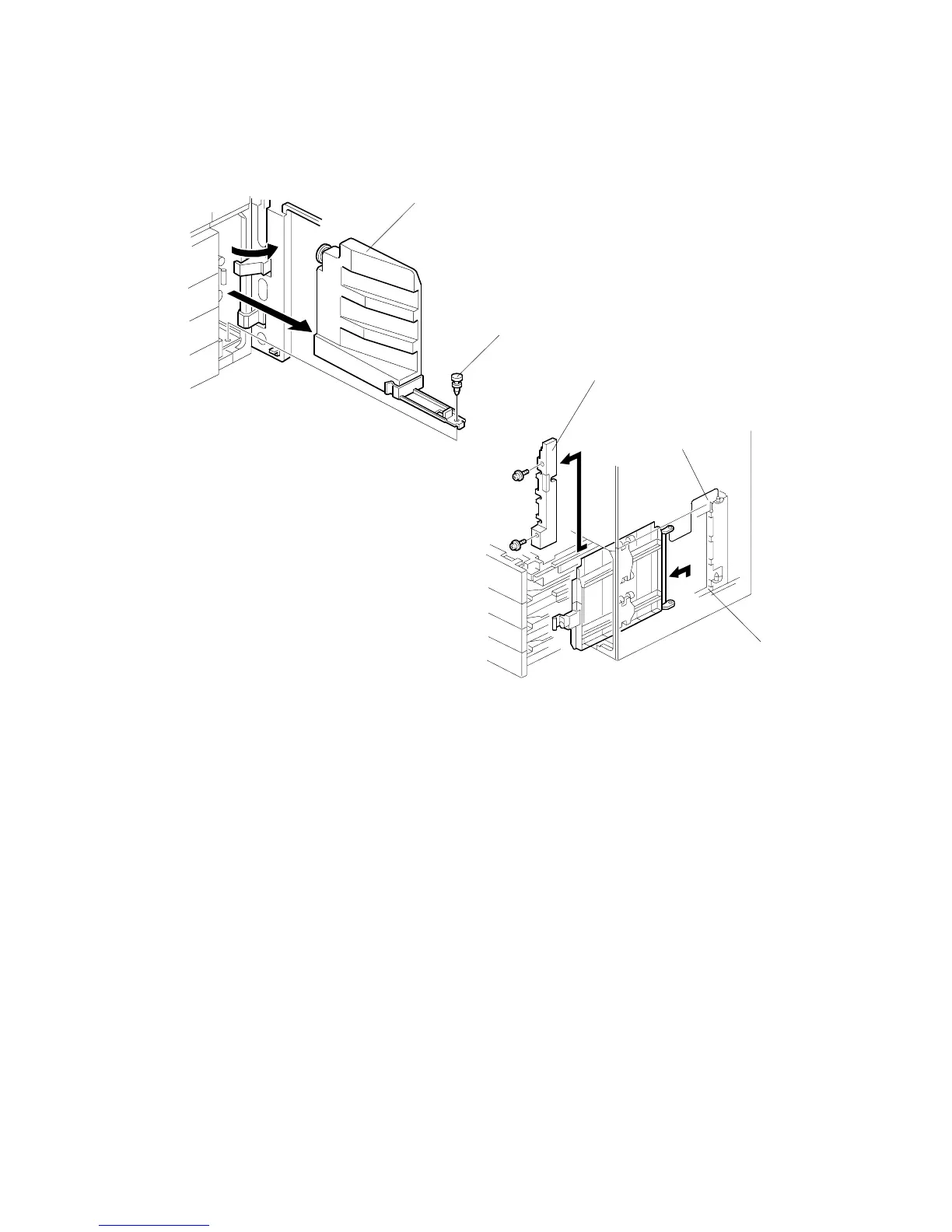

[A]: Nylon peg
[B]: Toner collection bottle
[C]: Vertical transport guide
[D]: Inner cover ( x 2)
NOTE: When re-installing the vertical transport guide, remove the lower right cover
then insert from [E]. (☛ 3.3.3)
B246R1068.WMF
B246R1069.WMF
[D]
[C]
[E]
[A]
[B]
To Next Page
