Ricoh MT-C1 User Manual

15 February 2006 FUSING UNIT
3-83
Replacement
Adjustment

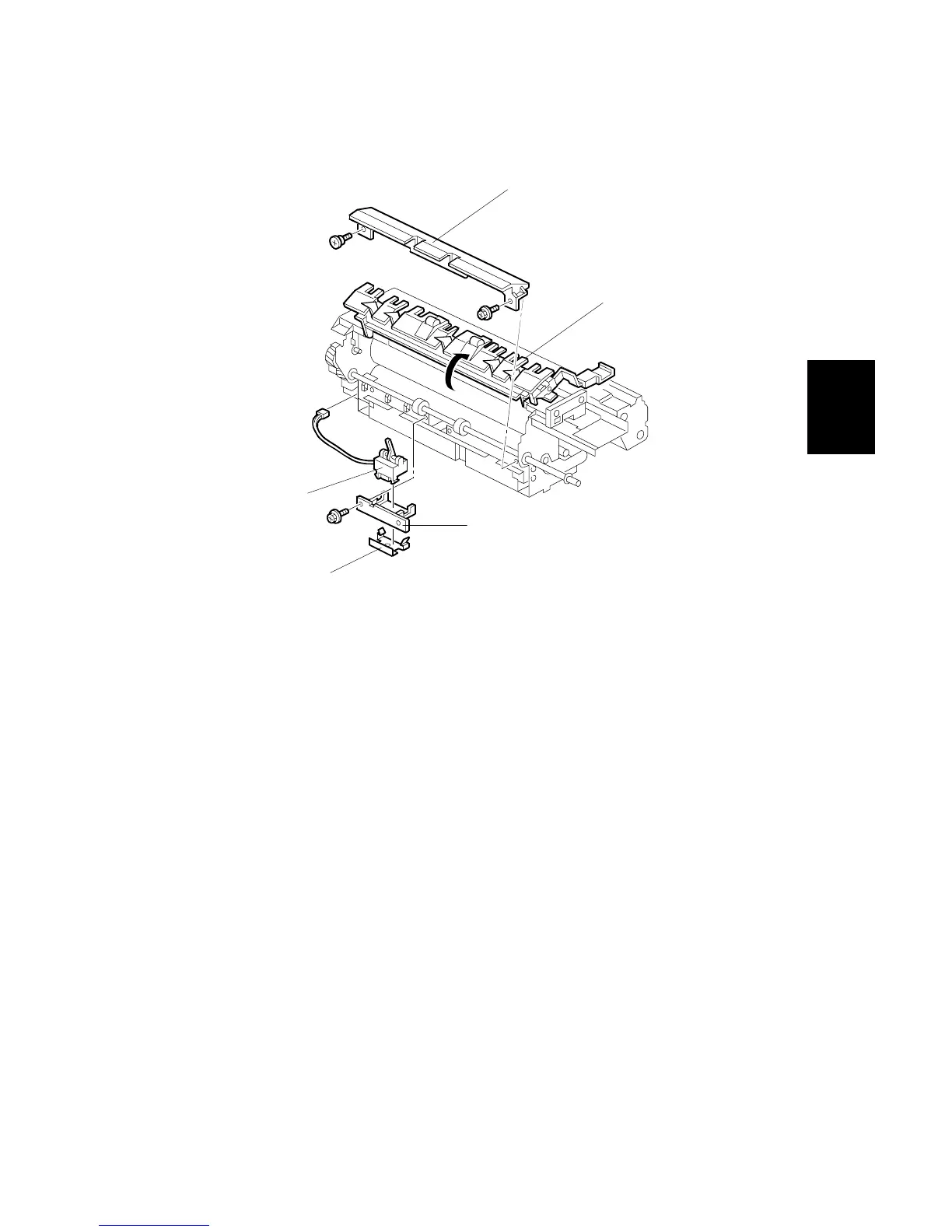

3.9.12 FUSING UNIT EXIT SENSOR
Fusing unit (☛ 3.9.1)
[A]: Open the hot roller stripper pawl unit
[B]: Exit guide plate ( x 2)
[C]: Fusing exit sensor holder ( x 2)
[D]: Plate spring
[E]: Fusing exit sensor ( x 1)
B246R1031.WMF
[A]
[B]
[C]
[D]
[E]
