15 February 2006 COVER INTERPOSER TRAY (B470)
1-47
Installation
Attaching the Interposer Tray
1. If you install the cover interposer tray on the B468/B469/B674 finisher, install
the spacer [A]. You will hear a click when it is installed correctly.
NOTE: If you install the cover interposer tray on the B478/B706, do not install
this spacer. This spacer is for the B468/B469/B674 installation only.
2. Lift the cover interposer tray, and align the keyholes [B] with the shoulder screws
[C]. Then move the cover interposer down onto the screws.
3. Attach the cover interposer with the screw [D] (" x 1, M3 x 6).
Important
• If you are installing the cover interposer tray on the B468/B469/B674, skip the
next section and go directly to “Attaching the Finisher to the Machine” on page 1-
50.
• If you are installing the cover interposer tray on the B478/B706, go to the next
section, install the corner plates on the B478/B706, then go to “Attaching the
Finisher to the Machine” on page 1-50.

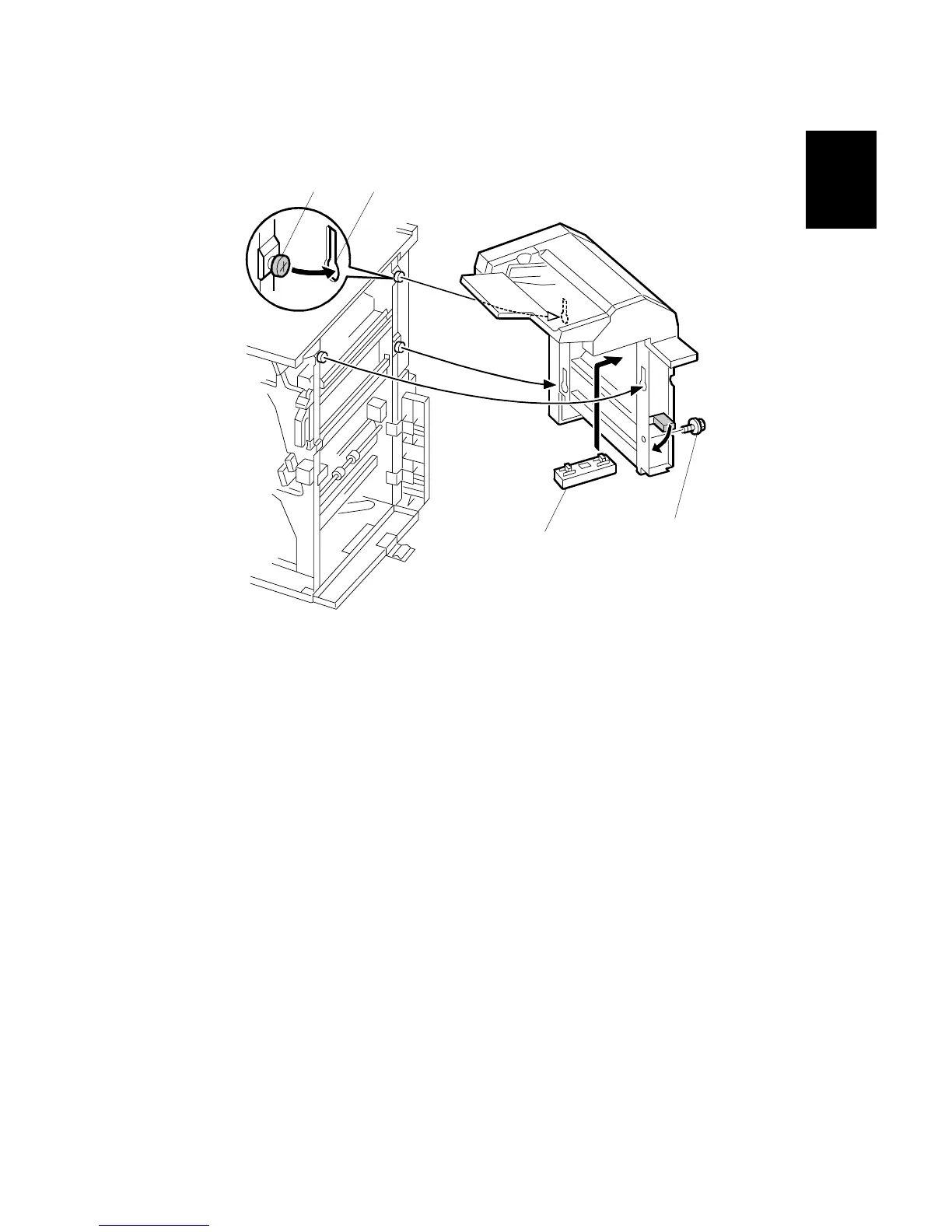

B470I004.WMF
[A]
[B] [C]
[D]
Booklet Finisher
B468/B469/B674 Only
To Next Page
