15 February 2006 COVER INTERPOSER TRAY (B470)
1-49
Installation

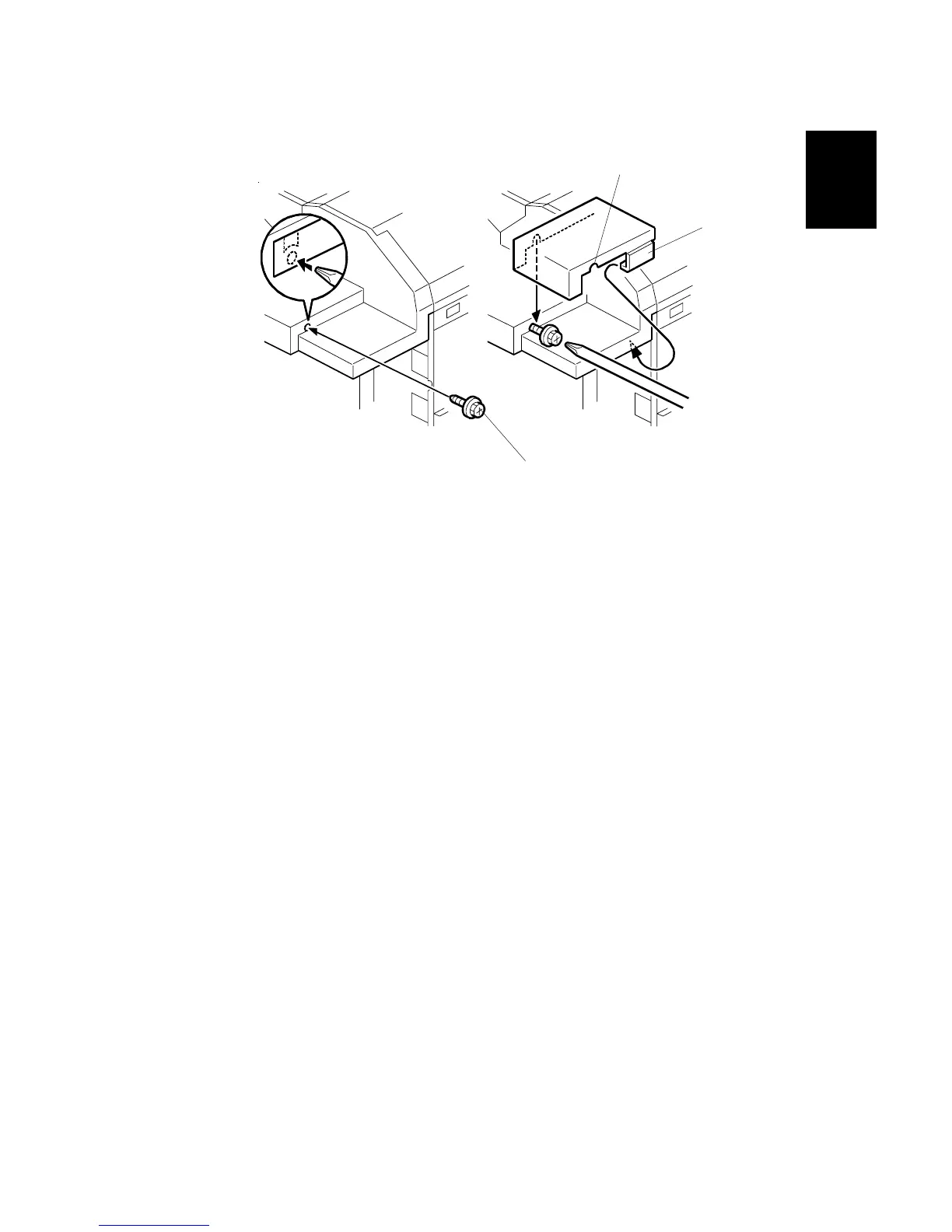

Right Front Corner Plate (B478/B706 only)
1. Temporarily set the screw [A] (M4 x 8) (with approximately two turns) to attach
the panel at the right front corner.
NOTE: You cannot see the hole, because there is tape on it. Punch the screw
through the hole.
2. Align the notch in the right front corner plate [B] with the screw and install it.
You hear a click when it is put into its correct position.
3. Put a long screwdriver into the plate cutout [C]. Then, tighten the screw to
attach the right front corner plate.
B470I008.WMF
[A]
[B]
[C]
