3000 SHEET FINISHER (B478/B706) 15 February 2006
1-56
1.10.2 INSTALLATION
Important!
• The 3000-Sheet Finisher B478 can be installed and used only on a B064 Series
machine..
• The 3000-Sheet Finisher B706 can be installed and used only on a B140 or
B246 Series machine.
!CAUTION
Unplug the machine power cord before starting the following procedure.

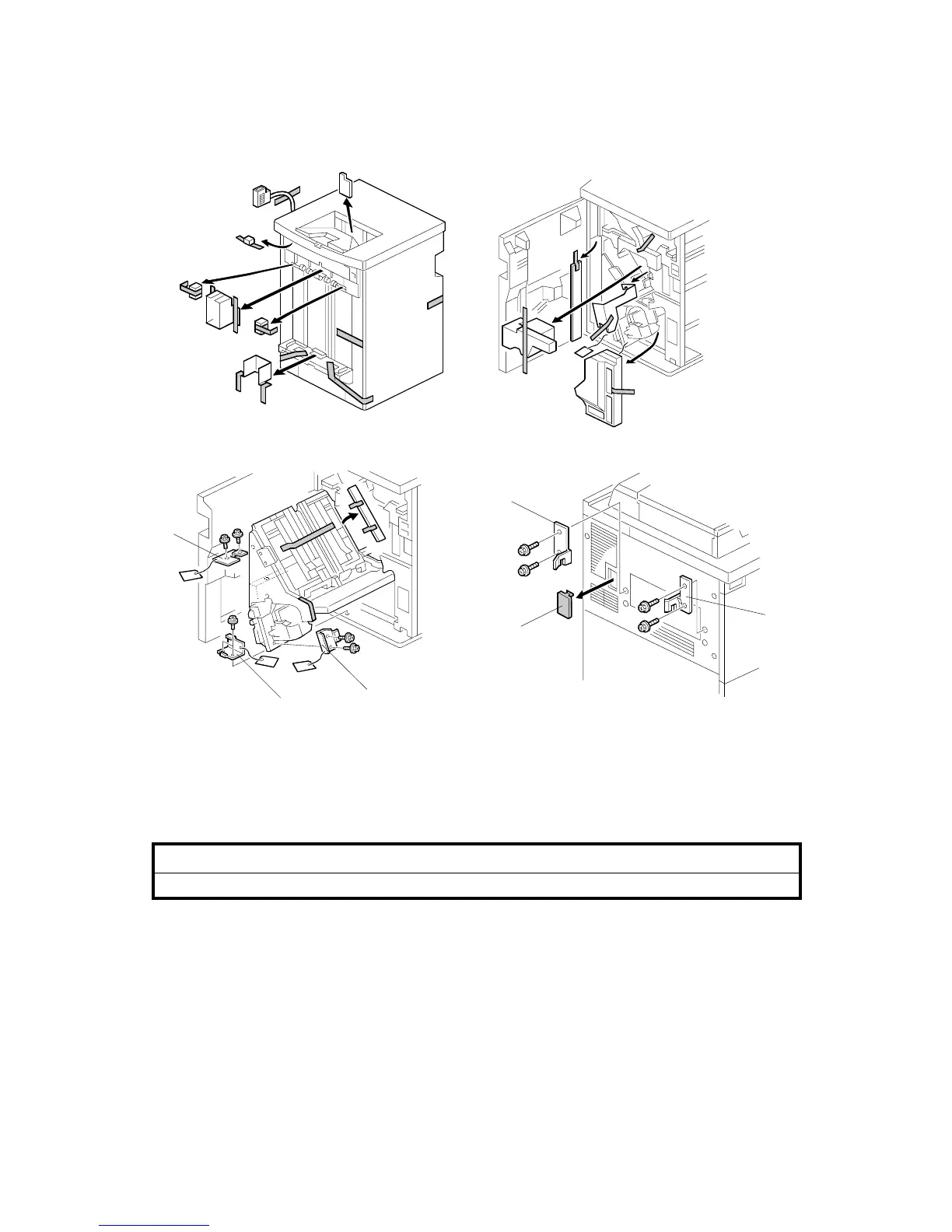

1. Unpack the finisher and remove all tapes and shipping retainers.
2. Open the front door and remove the shipping retainers. Remove brackets [A],
[B], and [C] (" x 2 each).
3. Install the front joint bracket [D] and rear joint bracket [E] (" x 2 each) (M4 x
14) on the left side of the copier.
4. Remove the connector cover [F].
B478I002.WMF
B478I003.WMF
B478I014.WMF
B478I019.WMF
[A]
[C]
[B]
[F]
[E]
[D]
To Next Page
