15 February 2006 MFP OPTIONS: B064 SERIES
1-153
Installation
Installing the Hardware
1. Remove the slot cover [A] (! x 2).
2. Remove the bracket [B] and attach the MLB panel [C].
3. Attach the File Format Converter board [D] to the controller board (! x 2).
4. Replace the controller board cover and rear cover.
5. Turn the main switch ON.
6. Do a network function Memory Clear (SP5801-010).
7. Do an NCS function Memory Clear (SP5801-011). This resets the network
password to “password”.
NOTE: This step is necessary to make sure that the password is reset
correctly.
8. Input these default values manually (SP5836).
SP Number Value SP Number Value
5836-001 0 5836-082 1
5836-002 0 5836-083 1
5836-072 0 5836-085 1
5836-073 0 5836-086 2
5836-075 0 5836-091 50
5836-076 1

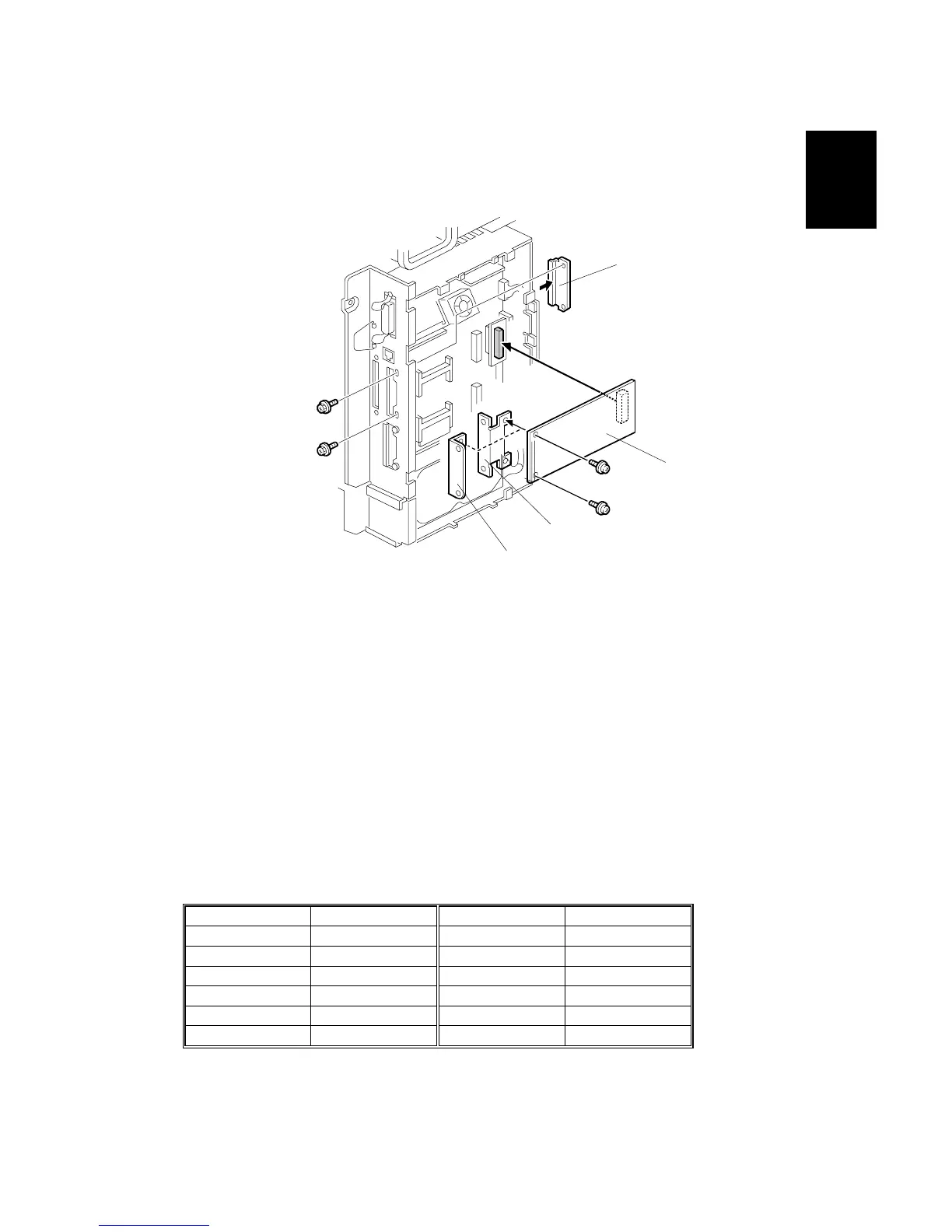

B110I104.WMF
