DRUM UNIT 15 February 2006
3-44

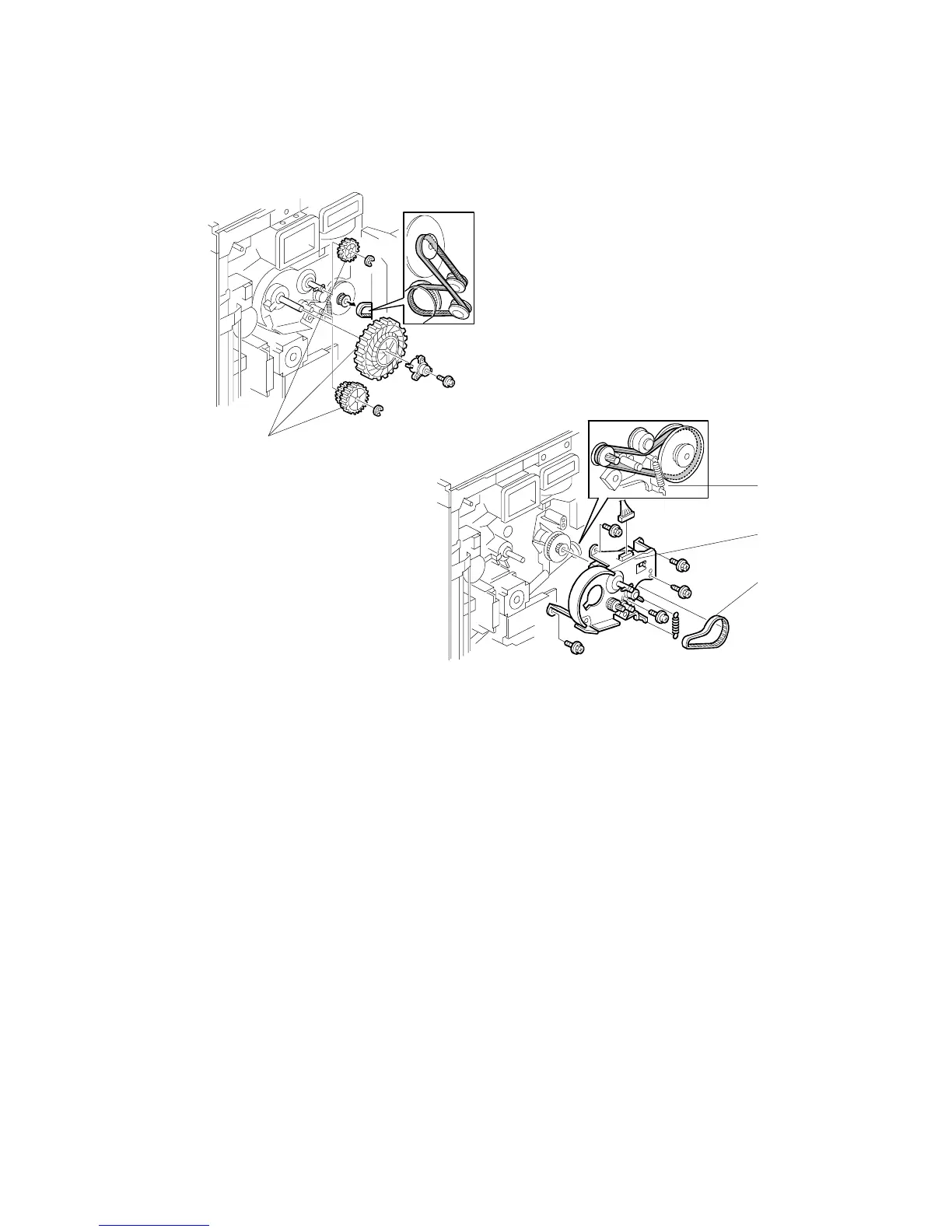

3.6.14 DRUM MOTOR
Rear covers (☛ 3.3.5)
Controller/IPU panel ( x 2) (not shown)
• The panel swings open like a door. You do not need to remove it.
Flywheel ( x 3) (not shown)
[A]: Three gears ( x 1,  x 2, Timing belt x 1)
[B]: Spring
[C]: Timing belt
[D]: Drum motor ( x 1,  x 5)
B246R957.WMF
B246R958.WMF
[A]
[B]
[C]
[D]
