SCANNER 15 February 2006

3-14

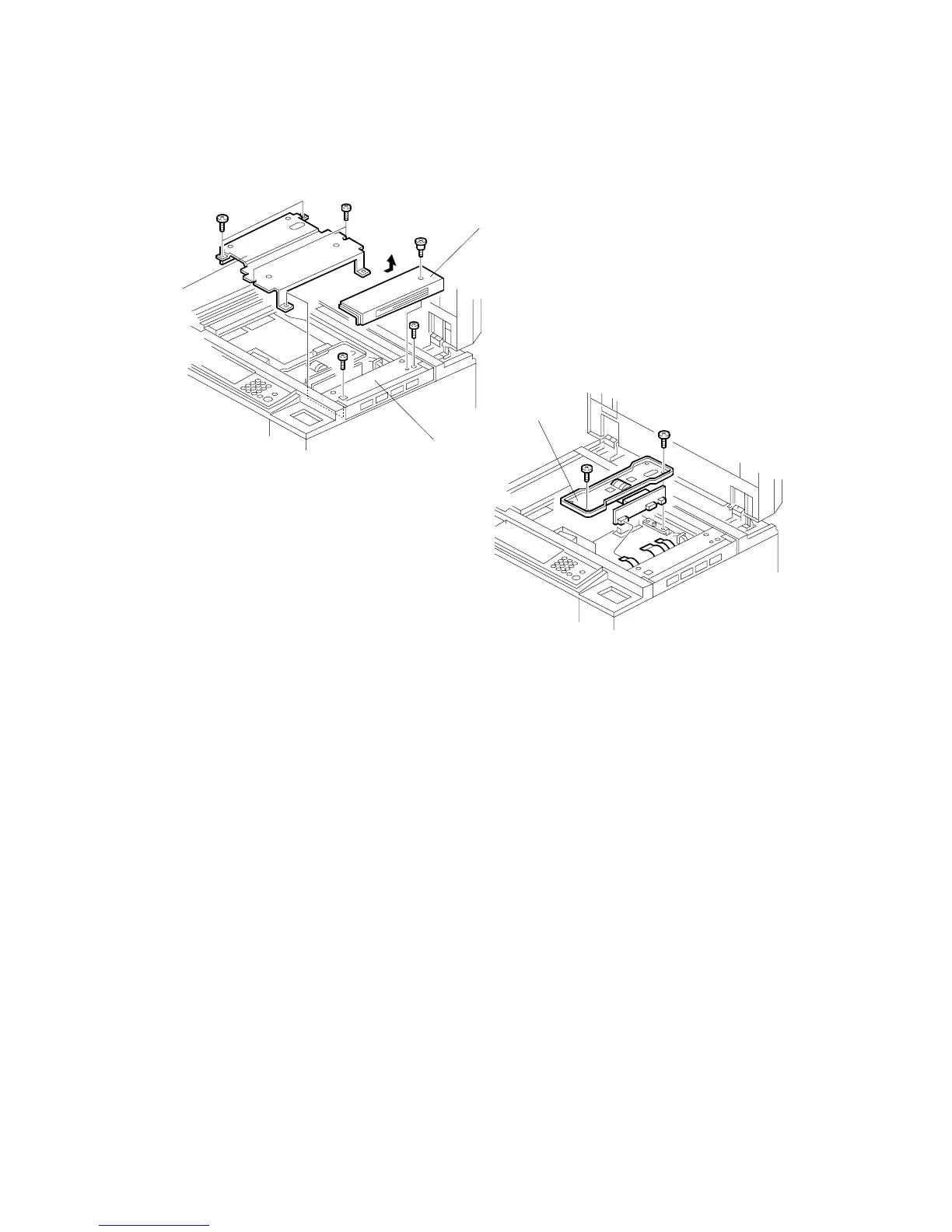

3.4.4 LENS BLOCK

Exposure glass (☛ 3.4.2)

Operation panel ( x 1) (☛ 3.3.1)

[A]: Top right cover ( x 1)

[B]: Right upper stay ( x 2)

[C]: Lens cover ( x 2)

[D]: Lens block ( x 2,  x 3)

NOTE: To avoid damaging the lens block, never set it down on the side with the

PCB; turn it over with the PCB up.

Re-assemble the machine, then perform the scanner and printer adjustments.

(☛ 3.14)

B246R911.WMF

B246R912.WMF

[A]

[B]

[C]

[D]
