15 February 2006 PAPER FEED
6-93
Detailed
Descriptions
6.11.4 PAPER FEED AND SEPARATION MECHANISM

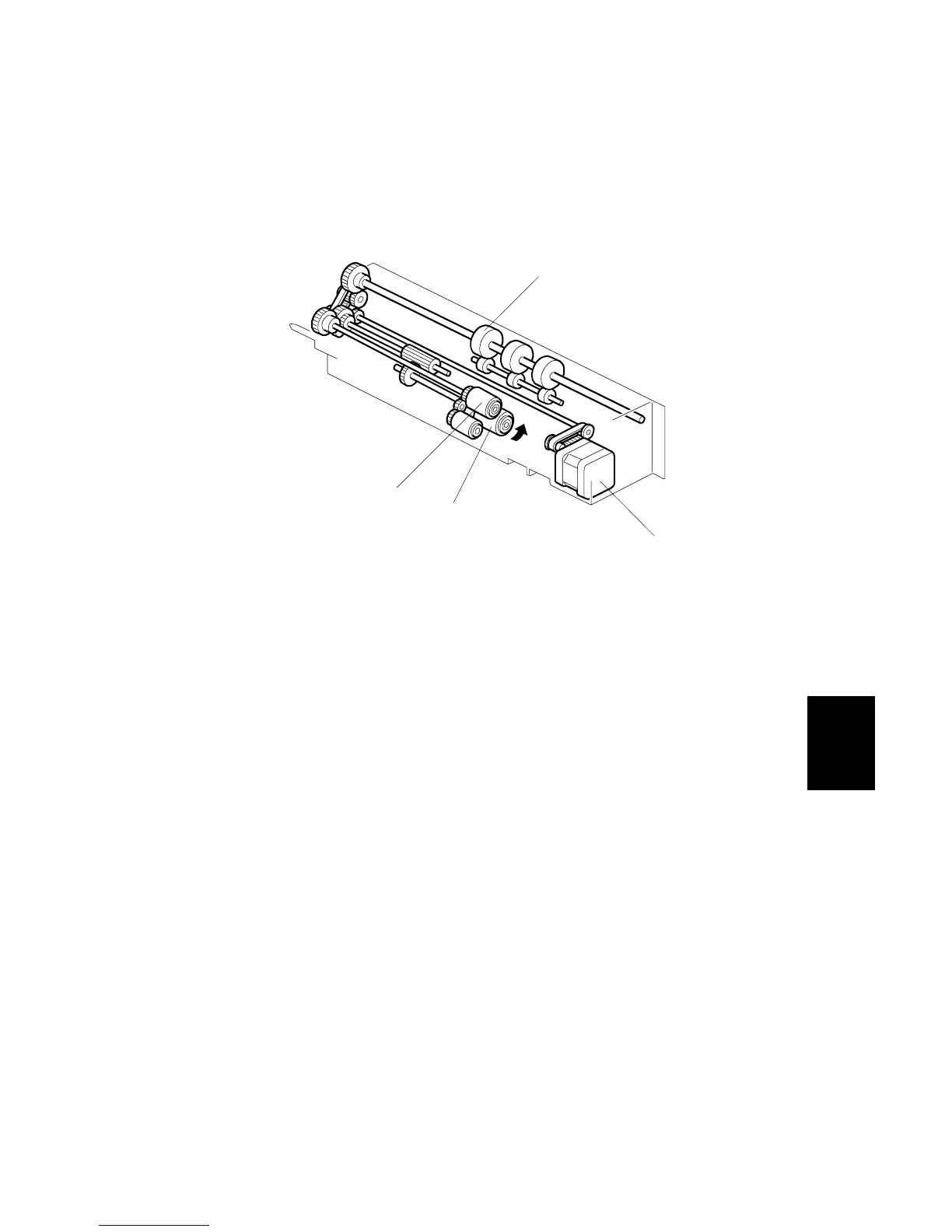

Paper Feed and Separation: No Paper Present
While waiting for the first sheet to feed and between sheets, the feed roller [A] must
not rotate. However, the grip roller [B] must turn, so that any paper coming up the
vertical transport path continues to feed. To do this, the paper feed motor [C]
rotates in reverse. The separation roller [D] is free to rotate in the direction shown
by the arrow, because the separation roller solenoid is off.
When the feed motor reverses:
Feed roller [A]
"
No rotation
Separation roller [D]
"
Free to rotate
Grip roller [B]
"
Rotates
B246D951.WMFF
[C]
[B]
[D]
[A]
