DRUM UNIT 15 February 2006
3-42

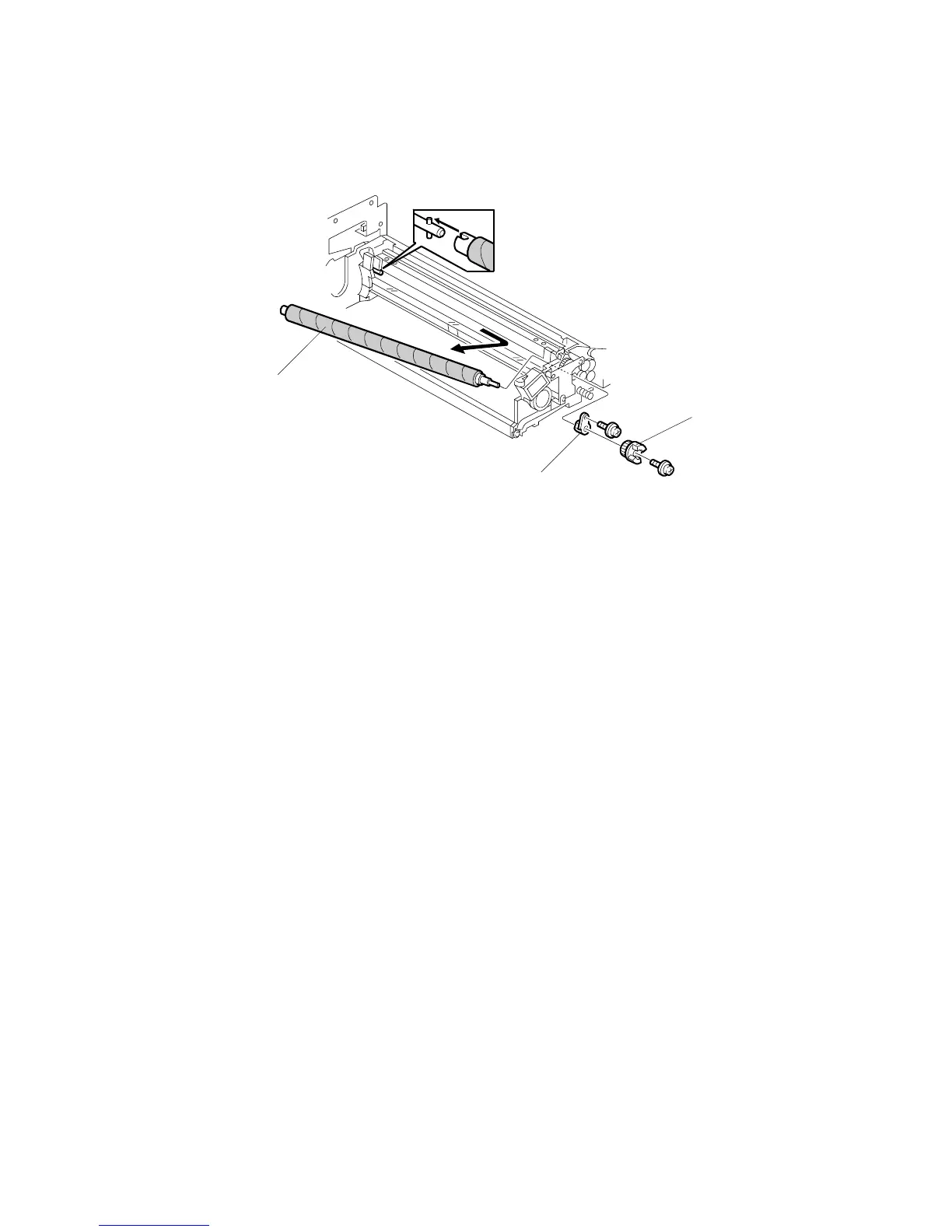

3.6.11 CLEANING BRUSH
OPC drum (☛ 3.6.5)
Drum cleaning blade (☛ 3.6.10)
[A]: Coupling ( x 1)
[B]: Inner bushing
[C]: Cleaning brush
• Pull the shaft toward the rear to disengage the front of the shaft, then pull
out.
NOTE: 1) After replacing the cleaning brush, clean the ID sensor to make sure
that it is clean and free of toner.
2) Avoid touching the cleaning brush with bare hands.
3) Check the entrance seals and confirm that they are not bent.
B246R954.WMF
[A]
[B]
[C]
To Next Page
