15 February 2006 DEVELOPMENT UNIT
3-49
Replacement
Adjustment
3.7.2 DEVELOPMENT FILTER
Development unit (☛ 3.6.1)
[A]: Toner hopper
[B]: Filter bracket top
[C]: Filter bracket
[D]: Development filter
• Make sure that the rails where the development filter bracket [C] connects to
the development unit are clean and free of toner. If there is any toner in the
rails, wipe them clean.
• When installing a new filter, set the filter inside the filter case then place the
case on top of the filter bracket [C]. The filter case closes any gaps at the
edges of the filter to prevent toner scatter.

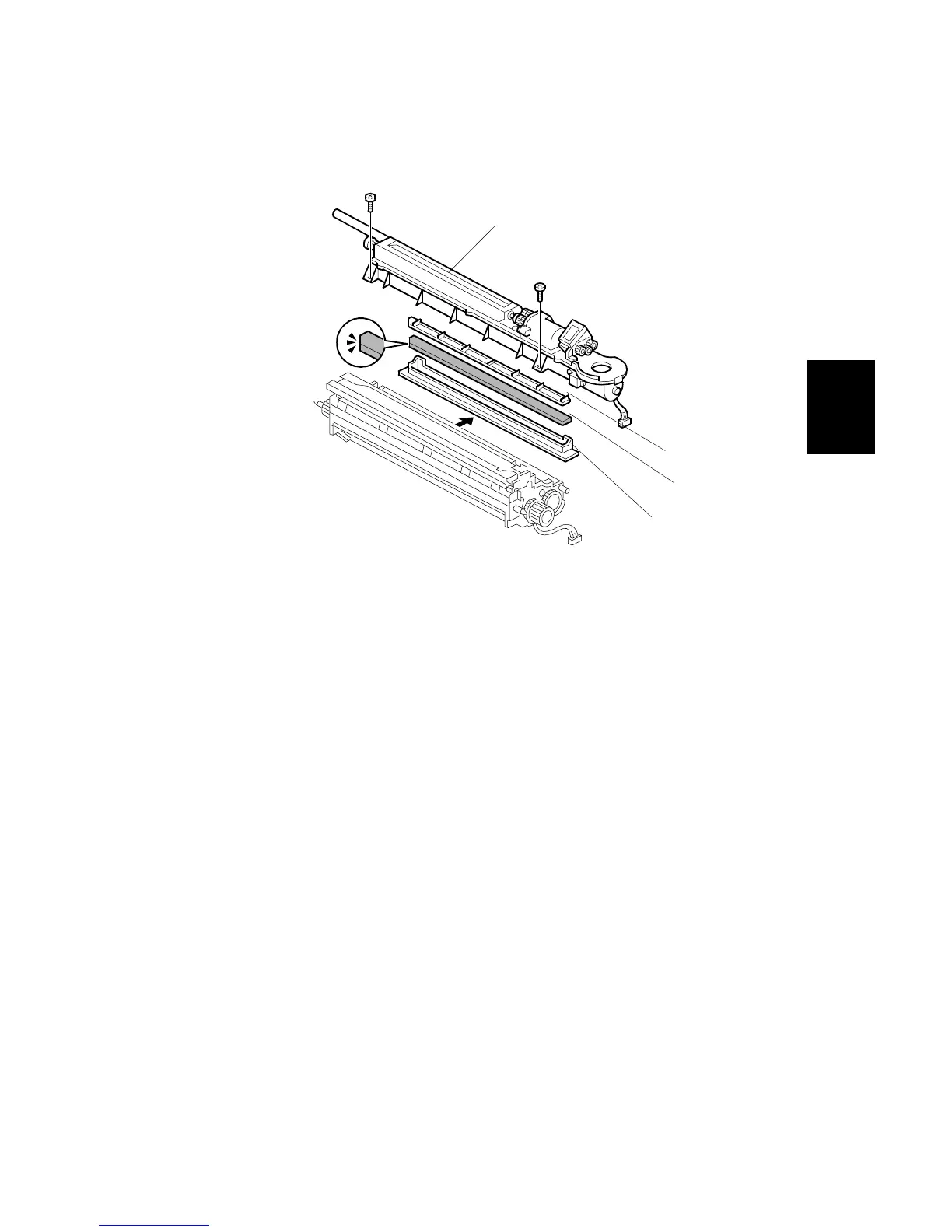

B246R967.WMF
[A]
[B]
[C]
[D]
