15 February 2006 MFP OPTIONS: B246 SERIES
1-175
Installation
1.24 MFP OPTIONS: B246 SERIES
1.24.1 OVERVIEW

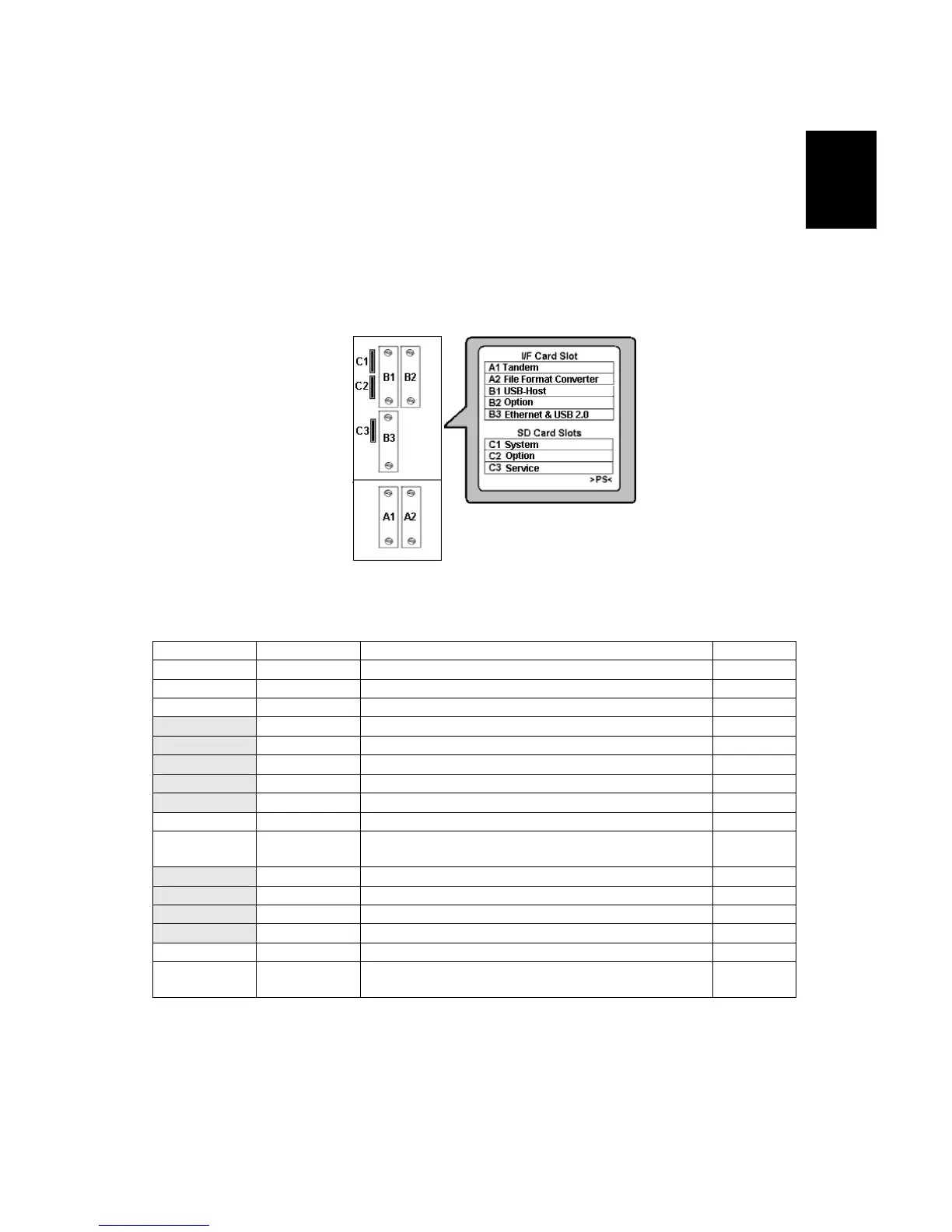

To make it easy to install MFP options, there are 5 slots for boards (B1, B2, B3, A1,
A2) and 3 slots (C1, C2, C3) for SD cards on the controller box. Each board or SD
card must be inserted in its assigned slot. The correct slots for each option are
shown on the decal attached to the controller box cover (shown in the diagram).
Here is a list of the controller options that can be installed on a B246 Series
machine.
Slot No. Name Section
--- B829-03 Copy Data Security Unit Type C (IPU Option) ☛1.24.13
A2 B609-04 File Format Converter Type C ☛1.24.8
B1 B825 USB Host Interface Unit Type A ☛1.24.11
B2*
1
826 Bluetooth Interface Unit ☛1.24.7
B2 B581-01 IEEE 1394 Interface Board ☛1.24.5
B2 B582-01, 02 IEEE 802.11b ☛1.24.6
B2 B679 IEEE1284 B679 ☛1.24.15
B2 B818 Remote Communication Gate Type CM1 ☛1.24.10
B3 G381 Gigabit Ethernet G381 ☛1.24.16
C1 System
System Slot (Holds the system software. Never
remove this SD card!)
---
C2*
2
B735 Data Overwrite Security Unit Type C ☛1.24.9
C2 B861 Java VM Card ☛1.24.14
C2 B659 Printer/Scanner Kit ☛1.24.3
C2 B525-15 PS3 ☛1.24.4
C3 B828 Browser Unit Type B ☛1.24.12
C3
Service
SD card for machine firmware update by the
customer engineer. Also for Browser Unit B828
*
1
Only one of these boards can be inserted at a time.
*
2
This is the only SD card slot available for applications. If more than one application is to be used,
the applications must be merged onto one SD card. (☛1.23.1)
