Ricoh MT-C1 User Manual

15 February 2006 SCANNER
3-15
Replacement
Adjustment
3.4.5 EXPOSURE LAMP
Exposure glass (☛ 3.4.2)
Operation panel (☛ 3.3.1)
Push the 1st scanner [A] to the cutout [B] in the scanner frame.
[C]: Exposure lamp cover ( x 2)
[D]: Exposure lamp ( x 3,  x 1)
NOTE: Never touch the surface of the exposure lamp with bare fingers.

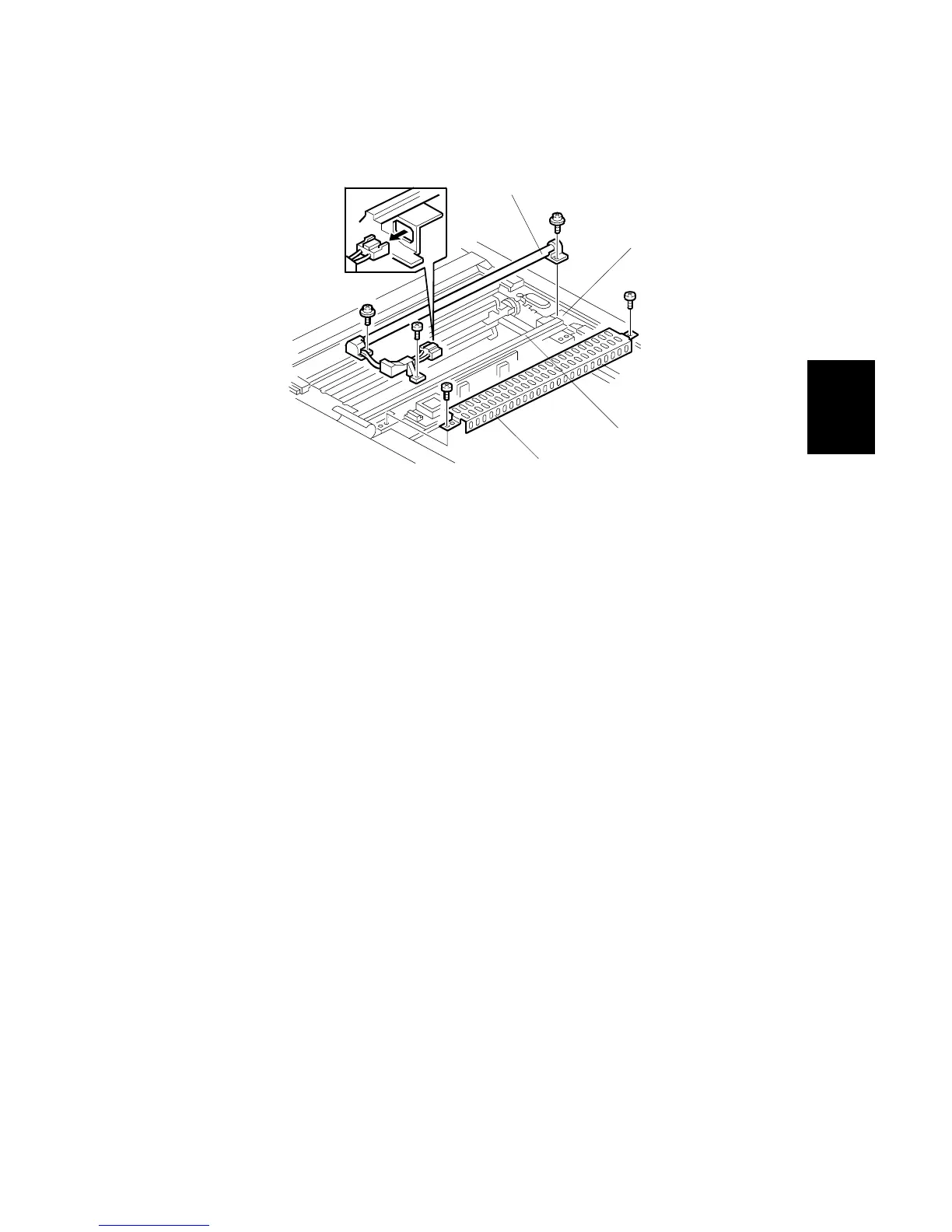

B246R913.WMF
[A]
[B]
[C]
[D]
