15 February 2006 COPY IMAGE ADJUSTMENTS: PRINTING/SCANNING
3-155
Replacement
Adjustment

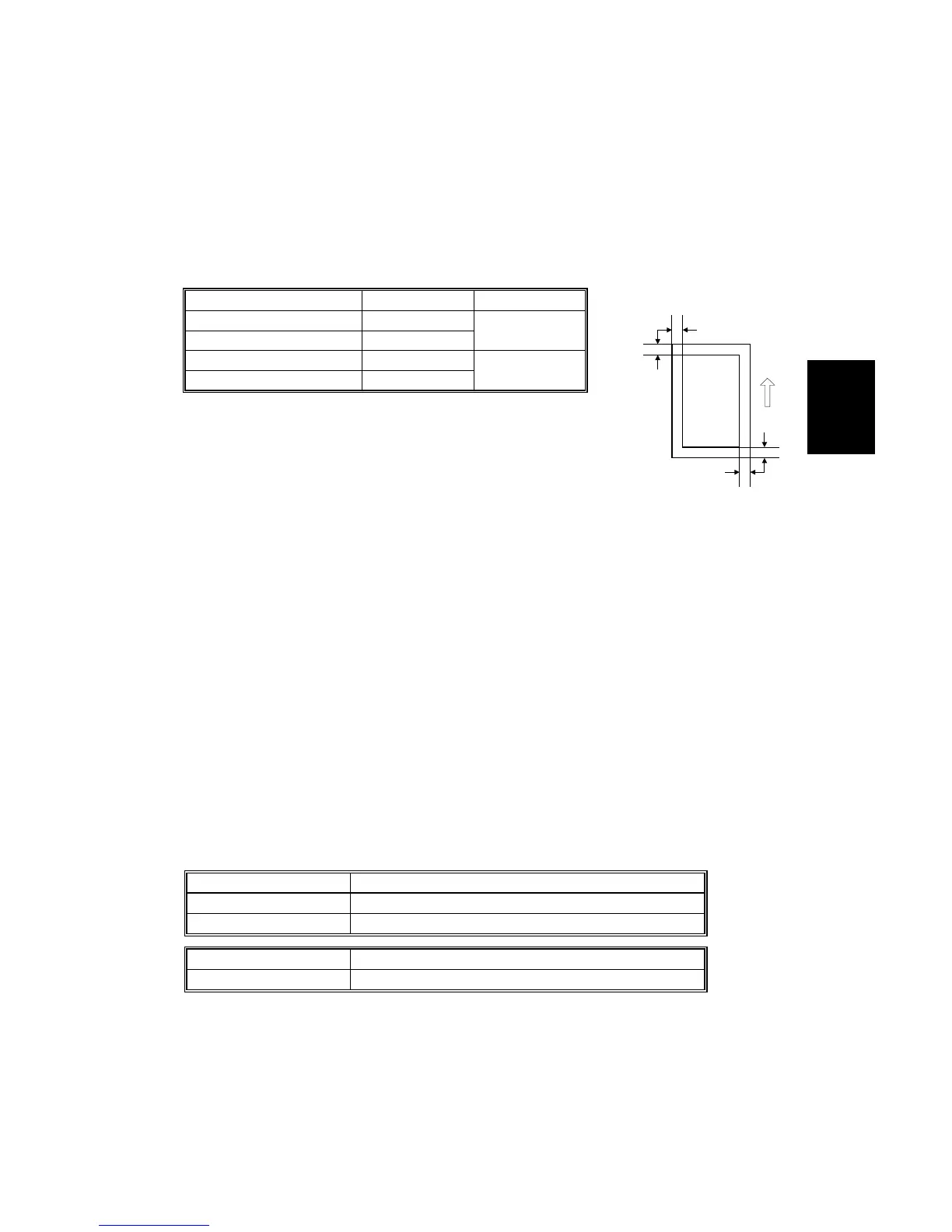

Blank Margin
NOTE: If the leading edge/side-to-side registration cannot be adjusted within
specifications, adjust the leading/left side edge blank margin.
1. Check the trailing edge and right edge blank margins, and adjust them with the
following SP modes.
SP2101 Print Erase Margin
SP mode Specification
Leading Edge SP2101-001
Trailing Edge SP2101-002
2.5±2 mm
Left edge SP2101-003
Right edge SP2101-004
2±1.5 mm
Registration Buckle Adjustment
When the customer is using special paper, buckle adjustment may be required if
paper feed problems arise.
• If the buckle is too large, this can cause wrinkling, creasing, or Z-fold jams
caused by sheets overtaking the sheets ahead of them in the paper path.
• If the buckle is too small, this can cause jams at the registration roller or skew
during paper feed.
1. Enter the SP mode.
2. Open SP1003.
• To prevent wrinkling, creasing, or Z-fold jams, set a smaller value.
• To prevent jams at the registration roller or to eliminate skew, set a larger
value.
SP1003-001 Registration Buckle Adjustment – Tray, LCT
SP1003-002 Registration Buckle Adjustment – Duplex Tray
SP1003-003 Registration Buckle Adjustment – By-pass Tray
Adjustment range -9 mm ~ +9 mm (small ~ large buckle)
Initial value 0 mm (Buckle = 10 mm)
D
C
B
A
B140R888.WMF
A: Trailing edge blank margin
B: Right edge blank margin
C: Leading edge blank margin
D: Left edge blank margin
