PCBS AND HDD 15 February 2006
3-116
3.12 PCBS AND HDD
3.12.1 BCU BOARD (BASE ENGINE CONTROL UNIT)
BCU: B064, B140 Series
Rear upper cover (☛ 3.3.5)

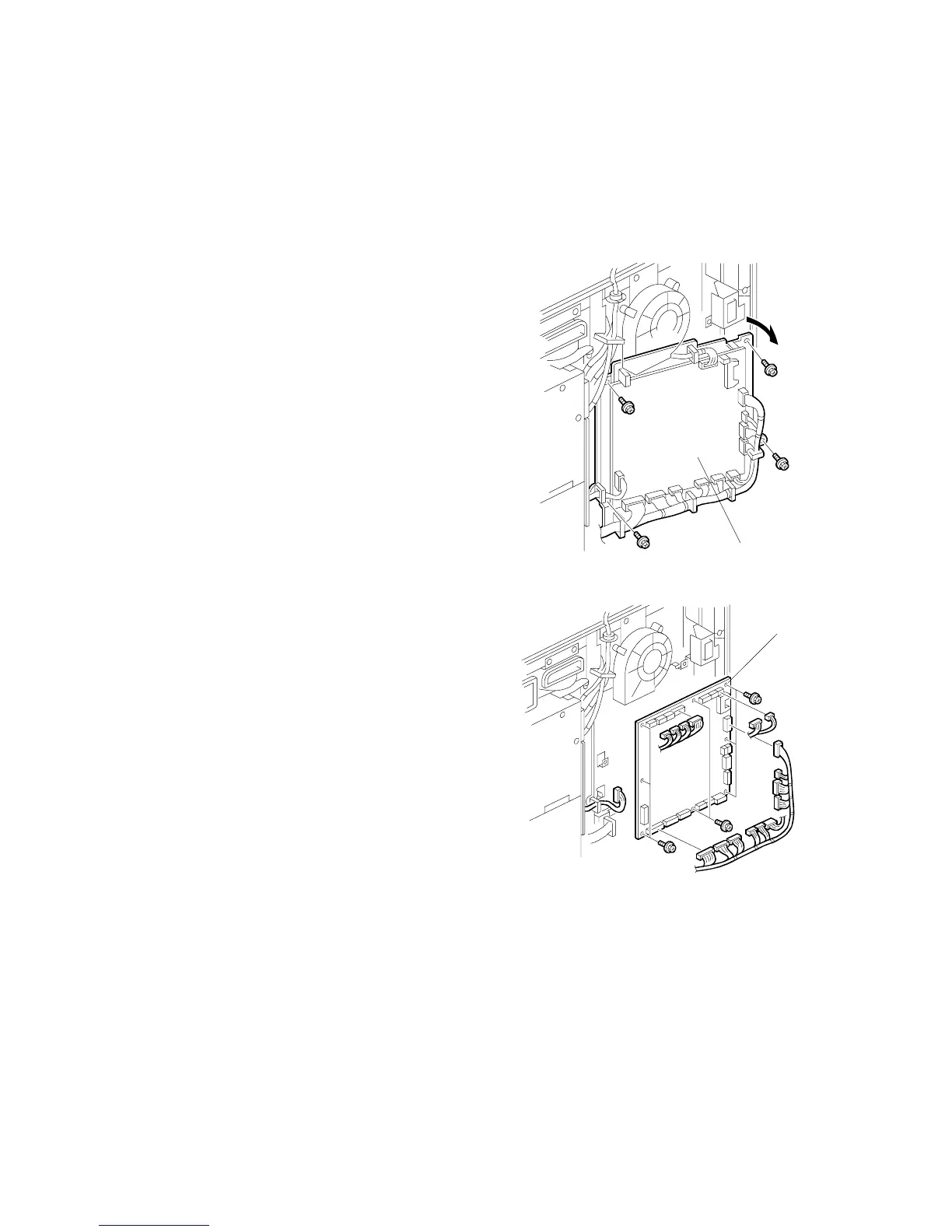

[A]: BCU board bracket ( x 4)
[B]: BCU board ( x 4, x 17)
1. Remove IC31 (EEPROM) from the old
BCU board.
2. Attach the EEPROM to the new board.
3. Make sure that the DIP switch settings
on the new board and identical to the
DIP switch settings of the old board.
4. After replacing this board, execute
SP3001-002 (ID Sensor Initialization)
B246R1099.WMF
B246R1023.WMF
[B]
[A]
To Next Page
