C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 81
4. From the BRAKE PICK VOLTAGE menu, enter the correct pick voltage setting.

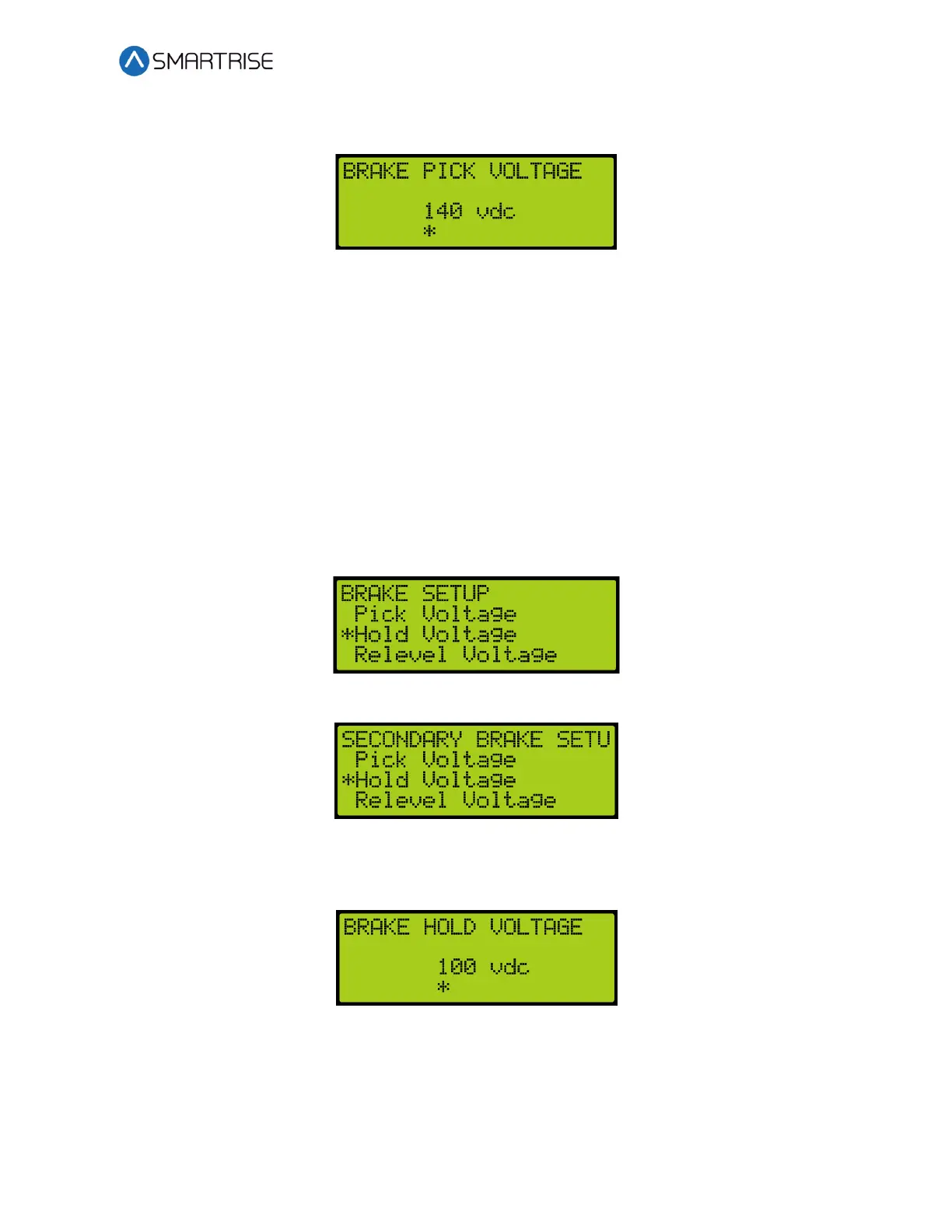

Figure 80: BRAKE PICK VOLTAGE Menu
5. Scroll right and press Save.
6.2 Hold Voltage
The hold voltage is the set voltage to hold the car in place once the brake has been released.
The following procedure describes how to set the hold voltage.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
3. From the BRAKE or SECONDARY BRAKE SETUP menu, scroll and select Hold Voltage.
Figure 81: (Primary) BRAKE SETUP Menu – Hold Voltage
Figure 82: SECONDARY BRAKE SETUP Menu – Hold Voltage
4. From the BRAKE HOLD VOLTAGE menu, enter the correct hold voltage setting.
Figure 83: BRAKE PICK VOLTAGE Menu
5. Scroll right and press Save.
